| Product Name: | Transforemr Core Cutting Machine | Usage: | Cutting Silicon Steel |
|---|---|---|---|
| Processing: | Two Cutting Two Punching | Sheet Thickness: | 0.23 ~ 0.35mm |
| Punching Hole: | Φ10 ~ 24mm | Feeding Speed: | 120m/min |
| Color: | Optional | Warranty Period: | 12 Months |
| Control System: | PLC | Operating System: | Automatic |
| Highlight: | 60mm Transformer Core Cutting Machine,Automatic PLC Transformer Core Cutting Machine,Automatic Transformer Core Cutter 120m/min |
||
Automatic Transformer Core Cutting Machine Cutting Strips With Width From 60mm to 600mm
Description of transformer core cutting machine HJX600-LL
Automatic transformer core cutting machine HJX600-LL is a special equipment to cut silicon iron strips to make transformer core legs or yokes. The transformer core cutting machine can punch the strip when cutting it. The core cutting machine can cut the strip with width from 60mm to 600mm. It is easy to operate it.
Quick details of transformer core cutting machine HJX600-LL
1.one-end decoiler (hydraulic expanding tight,electric inversion)
2.Slopping feed unit
3. Feeder (driven by servo motor, length-measuring device)
4. Punching unit
5.Shearing machine unit
6. Outlet platform
7. Depiler and sorting unit
8. Catching material unit
9. Whole line width adjusting system
10. Pneumatic system
Technical parameters of transformer core cutting machine HJX600-LL
Typical standard specifications of transformer core cutting machine HJX600-LL are shown below, however, the transformer core cutting machine can also be manufactured as requested.
| Roll Material Width Tolerance: | ≤±0.1mm |
| Roll Material Burr Length: | ≤0.03mm |
| Roll Material S Degree Tolerance: | single direction less than 0.1mm in 1000mm |
| Roll Material Wave Degree: | ≤15mm/1000mm( span more than 1000mm, height less than 15mm) |
| Sheet Thickness: | 0.23～ 0.35mm |
| Sheet Width: | 60～600mm |
| Sheet Length: | 350～9999mm |
| Punching Hole Dia. | Φ 10mm～24mm |
| Punching Hole Position: | can be bidirectional offset along the center line |
| V-notch Punching Eccentricity(along the center of the sheet): | ±30mm |
| Feeding speed: | 0～200m/min |
| Power: | 18Kw |

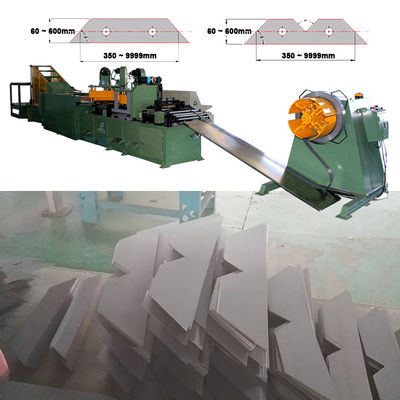

Fig 1: Transformer core cutting machine HJX600-LL's full view
Fig 2: Transformer core cutting machine HJJ600-LL's decoiler
