Automatic Reactor Core Cutting Machine With HRC88 - 90 Hardness Cutter Blade

Automatic Reactor Core Cutting Machine With HRC88 - 90 Hardness Cutter Blade

Automatic Reactor Core Cutting Machine With HRC88 - 90 Hardness Cutter Blade
Automatic Reactor Core Cutting Machine With HRC88 - 90 Hardness Cutter Blade

Large Image :  Automatic Reactor Core Cutting Machine With HRC88 - 90 Hardness Cutter Blade Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Model Number: DHJ400
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 90 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Machine Name: Reactor Core Cutting Machine Usage: Cutting Silicon Sheet
Cutting Width: 40 ~ 400mm Cutting Thickness: 0.23 ~ 0.5mm
Feeding Speed: 0 ~ 180m/min Motor Power: 12.5kw
Machine Color: As Requested Warranty: 12 Months
Control System: PLC Power Supply: 380V/50HZ
High Light:

Automatic Core Cutter 12.5kw

,

PLC Reactor Core Cutting Machine

,

HRC 88 Core Cutting Machine

Automatic Reactor Core Cutting Machine With HRC88~90 Hardness Cutter Blade


Description of automatic core cutting machine DHJ400

Automatic reactor core cutting machine DHJ400 is a professional cutter to silicon steel strip to make reactor core limbs. This type of automatic core cutting machine can cut different width of silicon steel and the width is from 40mm to 400mm. Moreover, the automatic core cutting machine can punch holes on the strip if needing. The automatic core cutting machine is provided with servo motor, which is used to drive cutting and punching actions and guarantees the accuracy of the actions.The automatic core cutting machine’s cutter blade adopts carbide cutter knife with high hardness. The hardness of the blade reaches HRC88 ~ 90, which makes the cutter cut the silicon steel 5 million times without being reground. The automatic core cutting machine features high automation, easy operation and so on.


Quick details of automatic core cutting machine DHJ400


  • Cutting sheet thickness 0.23 ~ 0.35mm
  • Cutting sheet width 40 ~ 400mm
  • Cutting sheet length 10 ~ 9999mm
  • Feeding sheet speed 180m/min
  • Power 12.5kw
  • One year warranty


Main components of automatic core cutting machine DHJ400

1.Decoiler for placing steel material
2.Frame
3.Feeding sheet unit
4.Hole punching device
5.Shearing unit
6.Stacking table
7.Control system

Main parameters of automatic core cutting machine DHJ400



Typical standard specifications of automatic core cutting machine DHJ400 are shown below, however, the core cutting machine can also be manufactured as requested.

1 Working Platform Height: 900mm
2 Decoiler: Hydraulic expanding
3 Decoiler Diameter Range: Φ470 ~ Φ508mm
4 Cutting Sheet Thickness: 0.23 ~ 0.35mm
5 Cutting Sheet Width: 40 ~ 400mm
6 Cutting Sheet Length: 10 ~ 9999mm
7 Feeding Sheet Speed: 180m/min
8 Feeding Tolerance: ±0.05mm/m
9 Height of Burr After Cutting: Less than 0.02mm
10 AC Power: 12.5kw


Automatic Reactor Core Cutting Machine With HRC88 - 90 Hardness Cutter Blade 0

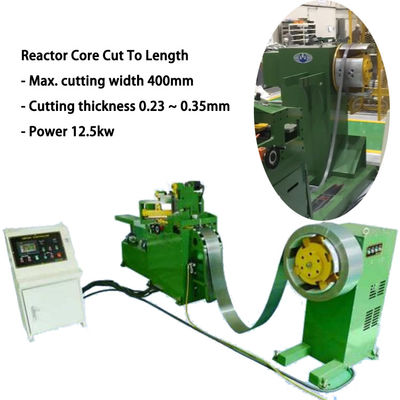

Fig 1: Automatic core cutting machine DHJ400's full view

Automatic Reactor Core Cutting Machine With HRC88 - 90 Hardness Cutter Blade 1
Fig 2: Automatic core cutting machine DHJ400's punching unit

Automatic Reactor Core Cutting Machine With HRC88 - 90 Hardness Cutter Blade 2Automatic Reactor Core Cutting Machine With HRC88 - 90 Hardness Cutter Blade 3Automatic Reactor Core Cutting Machine With HRC88 - 90 Hardness Cutter Blade 4Automatic Reactor Core Cutting Machine With HRC88 - 90 Hardness Cutter Blade 5Automatic Reactor Core Cutting Machine With HRC88 - 90 Hardness Cutter Blade 6Automatic Reactor Core Cutting Machine With HRC88 - 90 Hardness Cutter Blade 7Automatic Reactor Core Cutting Machine With HRC88 - 90 Hardness Cutter Blade 8
