8kw Automatic Core Cutting Machine Core Leg Silicon Steel Strip Cutter

8kw Automatic Core Cutting Machine Core Leg Silicon Steel Strip Cutter

8kw Automatic Core Cutting Machine Core Leg Silicon Steel Strip Cutter
8kw Automatic Core Cutting Machine Core Leg Silicon Steel Strip Cutter

Large Image :  8kw Automatic Core Cutting Machine Core Leg Silicon Steel Strip Cutter Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Model Number: DHJ300
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 90 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Machine Name: Core Cutting Machines Usage: Making Reactor Cores
Sheet Width: 30 ~ 300mm Sheet Thickness: 0.23 ~ 0.35mm
Cutting Speed: 0 ~ 180m/min Motor Power: 8kw
Color: Optional Warranty Period: 12 Months
High Light:

Leg Silicon Steel Strip Cutter

,

Automatic Silicon Steel Strip Cutter

,

Automatic Core Cutting Machine 8kw

Automatic Core Cutting Machine Core Leg Making Equipment Silicon Steel Strip Cutter





Description of automatic core cutting machine DHJ300



Automatic core cutting machine DHJ300, also known as reactor core cut to length line, is mainly used to cut reactor core material, such as electric steel or other alloys, to make reactor core. This process ensures that the components of the reactor core, such as lamination, are accurately sized for assembly. Using specialized cutting tools or machinery, the reactor core materials are cut to specific lengths according to the design requirements.





Quick details of automatic core cutting machine DHJ300



  • Sheet thickness 0.23 ~ 0.35mm
  • Sheet width 30 ~ 300mm
  • Cutting length 10 ~ 9999mm
  • Feeding speed 180m/min
  • Motor power 8kw
  • 12 months warranty



Main parameters of automatic core cutting machine DHJ300



Typical standard specifications of automatic core cutting machine DHJ300 are shown below, however, the core cutting machine can also be manufactured as requested.

1 Working Platform Height: 850mm
2 Decoiler Expanding Mode: Hydraulic
3 Decoiler Expansion Range: 470 ~ 508mm
4 Sheet Thickness: 0.23 ~ 0.35mm
5 Sheet Width: 30 ~ 300mm
6 Cutting Length: 10 ~ 9999mm
7 Feeding Speed: 180m/min
8 Feeding Tolerance: ±0.05mm/m
9 Cutting Burring: Less than 0.02mm
10 Motor Power: 8kw



8kw Automatic Core Cutting Machine Core Leg Silicon Steel Strip Cutter 0

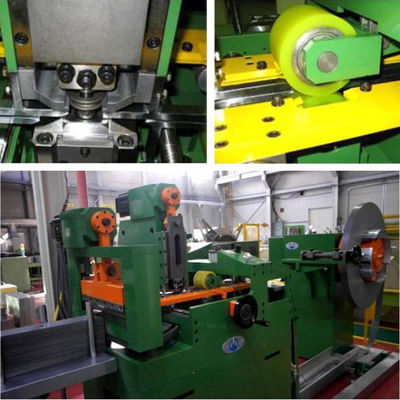

Fig 1: Automatic core cutting machine DHJ300's full view



8kw Automatic Core Cutting Machine Core Leg Silicon Steel Strip Cutter 1

Fig 2: Automatic core cutting machine DHJ300's punching unit



8kw Automatic Core Cutting Machine Core Leg Silicon Steel Strip Cutter 28kw Automatic Core Cutting Machine Core Leg Silicon Steel Strip Cutter 3

8kw Automatic Core Cutting Machine Core Leg Silicon Steel Strip Cutter 48kw Automatic Core Cutting Machine Core Leg Silicon Steel Strip Cutter 5

8kw Automatic Core Cutting Machine Core Leg Silicon Steel Strip Cutter 68kw Automatic Core Cutting Machine Core Leg Silicon Steel Strip Cutter 78kw Automatic Core Cutting Machine Core Leg Silicon Steel Strip Cutter 8
