Motor Coil Winding Machine 3KW Motor Driven Max Rotating Speed 200rpm

Motor Coil Winding Machine 3KW Motor Driven Max Rotating Speed 200rpm

Motor Coil Winding Machine 3KW Motor Driven Max Rotating Speed 200rpm
Motor Coil Winding Machine 3KW Motor Driven Max Rotating Speed 200rpm

Large Image :  Motor Coil Winding Machine 3KW Motor Driven Max Rotating Speed 200rpm Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Model Number: MW800
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 20 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Product Name: Motor Coil Winding Machine Usage: Winding Motor Coil
Mold Range: 200 ~ 800mm Machine Color: Optional
Motor Power: 3kw Winding Speed: 0 ~ 200rpm
Machine Height: 1400mm Warranty Time: 12 Months
High Light:

200rpm Motor Coil Machine

,

Motor Driven Coil Winding Machine

,

3KW Motor Coil Winder Machine

Motor Coil Winding Machine 3KW Motor Driven Max Rotating Speed 200rpm





Description of motor coil winding machine MW800



Motor coil winding machine MW800 is a professional equipment for winding different sizes of copper wire. This kind of semi automatic motor coil winding machine is mainly used to wind motor coils and other similar products. The motor coil winding machine is provided with a counter and corresponding parameters, such as the number of turns, can be input through the counter. The motor coil winding machine can wind the coil automatically after inputting the parameters. After finishing winding the coil, the motor coil winding machine can stop automatically. The motor coil winding machine features slow starting, smooth running, easy operation, strong practicability, complete functions and high torque, etc.





Quick details of motor coil winding machine MW800

  • Slow starting, when the machine begins to run, the rotating is very slow for safe
  • Smooth running, during running, the performance of the machine is very high
  • High torque, with 3kw motor, the machine is with high torque
  • High speed, the maximum winding speed can reach 200 rpm
  • Simple structure, with simple structure, the machine features easy maintaining
  • Easy operation, it is very easy to operate the machine, only need to input the parameters and press the foot pedal to run the machine



Main parameters of motor coil winding machine MW800



Typical standard specifications of motor coil winding machine MW800 are shown below, however the coil winding machine can also be manufactured as requested.



Machine Height: 1400mm
Adjustable Mold Moving Range: 150 ~ 800mm
Max Winding Speed: 0 ~ 200 rpm
Counting Range: 0 ~ 9999.9
Max. Loading Capacity: 500KG
Winding Motor Power: 3KW
Machine Colour: customized
Machine Dimension(LxWxH): 900x700x1400mm



Motor Coil Winding Machine 3KW Motor Driven Max Rotating Speed 200rpm 0

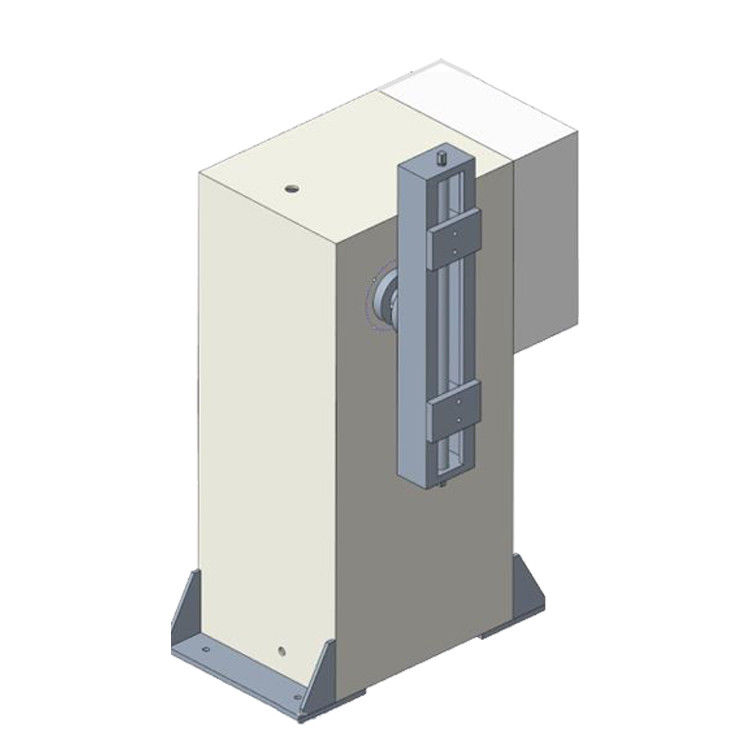

Fig 1: Motor coil winding machine MW800's full view



Motor Coil Winding Machine 3KW Motor Driven Max Rotating Speed 200rpm 1

Fig 2: Motor coil winding machine MW800's control board



Motor Coil Winding Machine 3KW Motor Driven Max Rotating Speed 200rpm 2Motor Coil Winding Machine 3KW Motor Driven Max Rotating Speed 200rpm 3Motor Coil Winding Machine 3KW Motor Driven Max Rotating Speed 200rpm 4Motor Coil Winding Machine 3KW Motor Driven Max Rotating Speed 200rpm 5Motor Coil Winding Machine 3KW Motor Driven Max Rotating Speed 200rpm 6Motor Coil Winding Machine 3KW Motor Driven Max Rotating Speed 200rpm 7Motor Coil Winding Machine 3KW Motor Driven Max Rotating Speed 200rpm 8Motor Coil Winding Machine 3KW Motor Driven Max Rotating Speed 200rpm 9Motor Coil Winding Machine 3KW Motor Driven Max Rotating Speed 200rpm 10
