4KW Motor Driving Motor Coil Winding Machine 0 - 80rpm Motor Coil Winder

4KW Motor Driving Motor Coil Winding Machine 0 - 80rpm Motor Coil Winder

4KW Motor Driving Motor Coil Winding Machine 0 - 80rpm Motor Coil Winder
4KW Motor Driving Motor Coil Winding Machine 0 - 80rpm Motor Coil Winder

Large Image :  4KW Motor Driving Motor Coil Winding Machine 0 - 80rpm Motor Coil Winder Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Model Number: MW1200
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 20 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Machine Name: Motor Coil Winding Machine Function: Winding Motor Coil
Winding Diameter: 1200mm Color: As Requested
Winding Power: 4kw Rotating Speed: 0 ~ 80rpm
Machine Height: 1400mm Warranty Period: 12 Months
High Light:

Motor Coil Winder 4KW

,

Motor Driving Coil Winding Machine

,

Customized Motor Coil Winder

Motor Coil Winder 4KW Motor Driving Motor Coil Winding Machine





Description of motor coil winding machine MW1200



Motor coil winding machine is a professional wire coil winder. The motor coil winding machine MW1200 can wind both copper wire and aluminium wire to make different sizes of wire coils. The wound coil can be used in motors and other similar products. With a counter, the motor coil winding machine can count the number of turns when winding. The motor coil winding machine iw provided with one adjustable mold with length 1200mm, which can be used to mount different winding arbors on. The adjustable mold’s adjustable range is from 150mm to 1200mm. The foot pedal of the motor coil winding machine is for starting and stopping the machine, moreover, the foot pedal can also be used to switch the rotating directions, forward or reverse. The motor coil winding machine features easy operation.





Quick details of motor coil winding machine MW1200

  • Motor power 3kw
  • Machine body height 1400mm
  • Winding speed 0 ~ 80rpm
  • Smooth running
  • Adjustable blocks
  • Simply structure



Main parameters of motor coil winding machine MW1200



Typical standard specifications of motor coil winding machine MW1200 are shown below, however, the motor coil winding machine can also be manufactured as requested.



Machine Height: 1400mm
Block Adjustable Range: 150 ~ 1200mm
Winding Speed: 0 ~ 80 rpm
Counter: 0 ~ 9999.9
Max. Capacity: 500KG
Motor Power: 4KW
Colour: customized
Machine weight: 500kgs
Machine Dimension (LxWxH): 900x700x1400mm





4KW Motor Driving Motor Coil Winding Machine 0 - 80rpm Motor Coil Winder 0

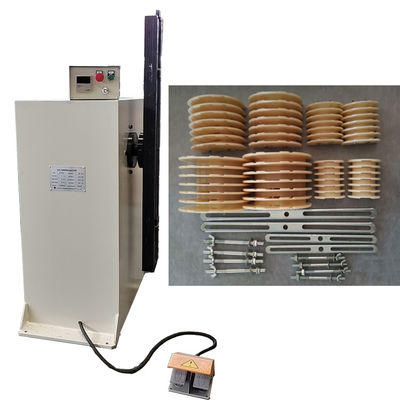

Fig 1: Motor coil winding machine MW1200's full view



4KW Motor Driving Motor Coil Winding Machine 0 - 80rpm Motor Coil Winder 1

Fig 2: Motor coil winding machine MW1200's control board



4KW Motor Driving Motor Coil Winding Machine 0 - 80rpm Motor Coil Winder 24KW Motor Driving Motor Coil Winding Machine 0 - 80rpm Motor Coil Winder 34KW Motor Driving Motor Coil Winding Machine 0 - 80rpm Motor Coil Winder 44KW Motor Driving Motor Coil Winding Machine 0 - 80rpm Motor Coil Winder 54KW Motor Driving Motor Coil Winding Machine 0 - 80rpm Motor Coil Winder 64KW Motor Driving Motor Coil Winding Machine 0 - 80rpm Motor Coil Winder 74KW Motor Driving Motor Coil Winding Machine 0 - 80rpm Motor Coil Winder 84KW Motor Driving Motor Coil Winding Machine 0 - 80rpm Motor Coil Winder 9
