Transformer Core Center Limb Cutting Machine Easy Operation

Transformer Core Center Limb Cutting Machine Easy Operation

Transformer Core Center Limb Cutting Machine Easy Operation
Transformer Core Center Limb Cutting Machine Easy Operation

Large Image :  Transformer Core Center Limb Cutting Machine Easy Operation Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Model Number: ZZ400
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 90 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Name: Transformer Core Cutting Machine Function: Making Core Center Limb
Strip Thickness: 0.2~0.35mm Strip Width: 40 ~400mm
Power: 14kw Feed Speed: 180m/min
Color: Customizable Warranty Period: 12 Months
High Light:

Transformer Core Center Limb Cutting Machine

,

14kw Transformer Core Cutter

Easy Operation Transformer Core Center Limb Cutting Machine





Description of transformer core cutting machine ZZ400



Transformer core cutting machine is a professional cutting machine for cutting silicon steel strip to make core center limes, which is for making transformer iron core. The transformer core cutting machine ZZ400 can be used to cut the silicon steel strip with maximum width 400mm. The transformer core cutting machine features easy operation, high production effective and so on. With the control system based on PLC, the transformer core cutting machine is with high automation.





Quick details of transformer core cutting machine ZZ400



Sheet thickness 0.2 ~ 0.35mm

Sheet width 40 ~ 400mm

Feeding speed 180m/min

Power 14kw





Technical parameters of transformer core cutting machine ZZ400



Typical standard specifications of transformer core cutting machine ZZ400 are shown below, however, the transformer core cutting machine is also can be manufactured as requested.

Roll Material Width Tolerance: ≤±0.1mm
Roll Material Burr Length: ≤0.02mm
Sheet Thickness: 0.2~‌0.35mm
Sheet Width: 40~300mm
Sheet Length: 150~2500mm
Feeding speed: 0~180m/min
Power: 14Kw



Transformer Core Center Limb Cutting Machine Easy Operation 0

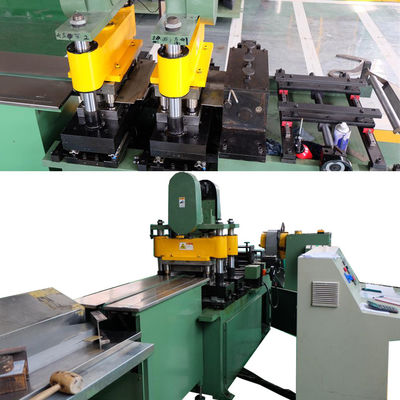

Fig 1: Transformer core cutting machine TZZ400's full view

Transformer Core Center Limb Cutting Machine Easy Operation 1

Fig 2: Transformer core cutting machine TZZ400's side view



Transformer Core Center Limb Cutting Machine Easy Operation 2

Transformer Core Center Limb Cutting Machine Easy Operation 3Transformer Core Center Limb Cutting Machine Easy Operation 4Transformer Core Center Limb Cutting Machine Easy Operation 5Transformer Core Center Limb Cutting Machine Easy Operation 6Transformer Core Center Limb Cutting Machine Easy Operation 7Transformer Core Center Limb Cutting Machine Easy Operation 8
