Servo Motor Driven Automatic Core Cutting Machine Making Reactor Core Limb

Servo Motor Driven Automatic Core Cutting Machine Making Reactor Core Limb

Servo Motor Driven Automatic Core Cutting Machine Making Reactor Core Limb
Servo Motor Driven Automatic Core Cutting Machine Making Reactor Core Limb

Large Image :  Servo Motor Driven Automatic Core Cutting Machine Making Reactor Core Limb Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Model Number: DHJ400
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 90 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Name: Reactor Core Cutting Machine Function: Cutting Silicon Sheet
Strip Width: 40 ~ 400mm Strip Thickness: 0.23 ~ 0.5mm
Feeding Speed: 0 ~ 180m/min Power: 12.5kw
Color: As Requested Warranty Period: 12 Months
Control System: PLC Power Supply: 380V/50HZ
High Light:

40mm Automatic Core Cutting Machine

,

Servo Motor Driven Automatic Core Cutter

,

Reactor Core Limb Automatic Cutting Machine

Servo Motor Driven Automatic Core Cutting Machine Making Reactor Core Limb


Description of automatic core cutting machine DHJ400

Automatic core cutting machine DHJ400 is a special cutter equipment, which is mainly used to cut silicon steel strip to make reactor core limbs. This type of automatic core cutting machine can cut different width of silicon steel and the width of the strip can be from 40mm to 400mm. Moreover, the automatic core cutting machine can punch holes on the strip if needing. The automatic core cutting machine’s cutting and punching actions are driven by servo motors, which guarantees the accuracy of the actions.The automatic core cutting machine’s cutter blade adopts carbide cutter knife with HRC88 ~ 90 hardness. The cutter of the cutting machine can cut the silicon steel strips five million times without regrinding the blade. The automatic core cutting machine features high automation, easy operation and so on.


Quick details of automatic core cutting machine DHJ400

  • Strip thickness 0.23 ~ 0.35mm
  • Strip width 40 ~ 400mm
  • Strip length 10 ~ 9999mm
  • Feeding speed 180m/min
  • Power 12.5kw
  • One year warranty


Main components of automatic core cutting machine DHJ400

1.Decoiler
2.Frame
3.Feeding unit
4.Hole punching device
5.Shearing unit
6.Stacking table
7.Control system

Main parameters of automatic core cutting machine DHJ400



Typical standard specifications of automatic core cutting machine DHJ400 are shown below, however, the core cutting machine can also be manufactured as requested.

1 Working Platform Height: 900mm
2 Decoiler: Hydraulic expanding
3 Decoiler Diameter Range: Φ470 ~ Φ508mm
4 Cutting Sheet Thickness: 0.23 ~ 0.35mm
5 Cutting Sheet Width: 40 ~ 400mm
6 Cutting Sheet Length: 10 ~ 9999mm
7 Feeding Sheet Speed: 180m/min
8 Feeding Tolerance: ±0.05mm/m
9 Height of Burr After Cutting: Less than 0.02mm
10 AC Power: 12.5kw


Servo Motor Driven Automatic Core Cutting Machine Making Reactor Core Limb 0

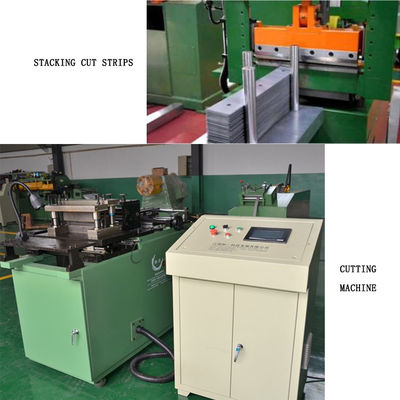

Fig 1: Automatic core cutting machine DHJ400's full view

Servo Motor Driven Automatic Core Cutting Machine Making Reactor Core Limb 1
Fig 2: Automatic core cutting machine DHJ400's punching unit

Servo Motor Driven Automatic Core Cutting Machine Making Reactor Core Limb 2Servo Motor Driven Automatic Core Cutting Machine Making Reactor Core Limb 3Servo Motor Driven Automatic Core Cutting Machine Making Reactor Core Limb 4Servo Motor Driven Automatic Core Cutting Machine Making Reactor Core Limb 5Servo Motor Driven Automatic Core Cutting Machine Making Reactor Core Limb 6Servo Motor Driven Automatic Core Cutting Machine Making Reactor Core Limb 7Servo Motor Driven Automatic Core Cutting Machine Making Reactor Core Limb 8
