Semi Automatic Electric Motor Coil Winding Machine 150mm Flange Diameter

Semi Automatic Electric Motor Coil Winding Machine 150mm Flange Diameter

Semi Automatic Electric Motor Coil Winding Machine 150mm Flange Diameter
Semi Automatic Electric Motor Coil Winding Machine 150mm Flange Diameter

Large Image :  Semi Automatic Electric Motor Coil Winding Machine 150mm Flange Diameter Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Model Number: MW150
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 20 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Product Name: Motor Coil Winding Machine Usage: Winding Motor Coils
Flange Diameter: Ø150mm Color: As Requested
Winding Power: 2.2kw Winding Speed: 0 ~ 400rpm
Machine Height: 1400mm Warranty: 12 Months
High Light:

Motor Coil Winding Machine 150mm

,

Electric Motor Coil Winder

,

High Speed Motor Winding Machine

Factory Direct Selling Semi Automatic Electric Motor Coil Winding Machine





Description of motor coil winding machine MW150



Motor coil winding machine MW150 is a professional wire winder for winding motor coils and other similar products. The motor coil winding machine can be used to wind different specifications of copper wires or aluminium wires. With a counter, the motor coil winding machine can count the turns when winding. The motor coil winding machine is provided with winding motor, flange with diameter 150mm for fixing winding head, foot pedal, counter, gear box, and electrical cabinet. The foot pedal can be used to start or stop running the machine and switch the winding direction. The motor coil winding machine features big torque, high winding speed and easy to operate.





Quick details of motor coil winding machine MW150

  • Slow starting
  • Smooth running
  • Strong pulling force
  • High speed
  • Simply structure
  • Easy operating



Main parameters of motor coil winding machine MW150



Typical standard specifications of motor coil winding machine MW150 are shown below, however, the winding machine can also be manufactured as requested.

Total Height: 1400mm
Flange Diameter: Ø150mm
Winding Speed: 0 ~ 400rpm
Counting Range: 0 ~ 9999.9
Max. Loading Capacity: 200KG
Motor Power: 2.2KW
Colour: customized
Machine Dimension(LxWxH): 900x700x1400mm



Semi Automatic Electric Motor Coil Winding Machine 150mm Flange Diameter 0

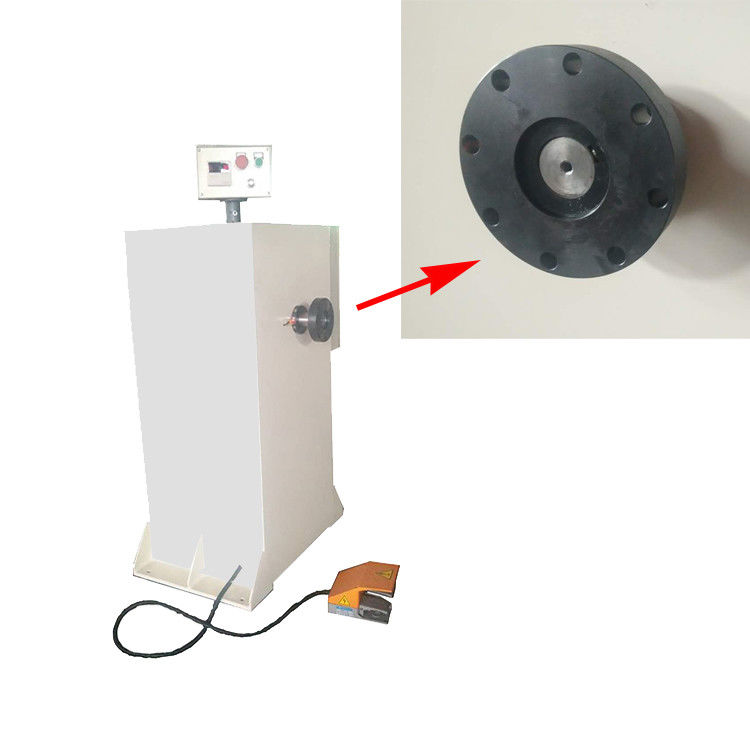

Fig 1: Motor coil winding machine MW150's full view



Semi Automatic Electric Motor Coil Winding Machine 150mm Flange Diameter 1

Fig 2: Motor coil winding machine MW150's control board



Semi Automatic Electric Motor Coil Winding Machine 150mm Flange Diameter 2



Semi Automatic Electric Motor Coil Winding Machine 150mm Flange Diameter 3Semi Automatic Electric Motor Coil Winding Machine 150mm Flange Diameter 4Semi Automatic Electric Motor Coil Winding Machine 150mm Flange Diameter 5

Semi Automatic Electric Motor Coil Winding Machine 150mm Flange Diameter 6

Semi Automatic Electric Motor Coil Winding Machine 150mm Flange Diameter 7

Semi Automatic Electric Motor Coil Winding Machine 150mm Flange Diameter 8Semi Automatic Electric Motor Coil Winding Machine 150mm Flange Diameter 9Semi Automatic Electric Motor Coil Winding Machine 150mm Flange Diameter 10
