| Name: | Core Cutting Machines | Function: | Making Reactor Cores |
|---|---|---|---|
| Cut Width: | 30 ~ 300mm | Cut Thickness: | 0.23 ~ 0.35mm |
| Speed: | 0 ~ 180m/min | Motor Power: | 8kw |
| Color: | Optional | Warranty Period: | 12 Months |
| High Light: | Reactor Automatic Core Cutting Machine,Reactor Core Cutting Machine 8kw,180m/min Silicon Steel Strip Cutter |
||
Factory Direct Sales Reactor Core Cutting Machine Silicon Steel Strip Cutter
Description of automatic core cutting machine DHJ300
Automatic core cutting machine DHJ300 is a professional cutter, which is mainly used to cut silicon steel to make legs of reactor cores. The core cutting machine is also known as reactor core cut to length line. The core cutting machine is provided with decoiler for putting steel material. With specialized cutting tools, the cutting machine can cut the strip according to the parameters input. The cutting machine features easy operation.
Quick details of automatic core cutting machine DHJ300
Main parameters of automatic core cutting machine DHJ300
Typical standard specifications of automatic core cutting machine DHJ300 are shown below, however, the core cutting machine can also be manufactured as requested.
| 1 | Working Platform Height: | 850mm |
| 2 | Decoiler Expanding Mode: | Hydraulic |
| 3 | Decoiler Expansion Range: | 470 ~ 508mm |
| 4 | Sheet Thickness: | 0.23 ~ 0.35mm |
| 5 | Sheet Width: | 30 ~ 300mm |
| 6 | Cutting Length: | 10 ~ 9999mm |
| 7 | Feeding Speed: | 180m/min |
| 8 | Feeding Tolerance: | ±0.05mm/m |
| 9 | Cutting Burring: | Less than 0.02mm |
| 10 | Motor Power: | 8kw |

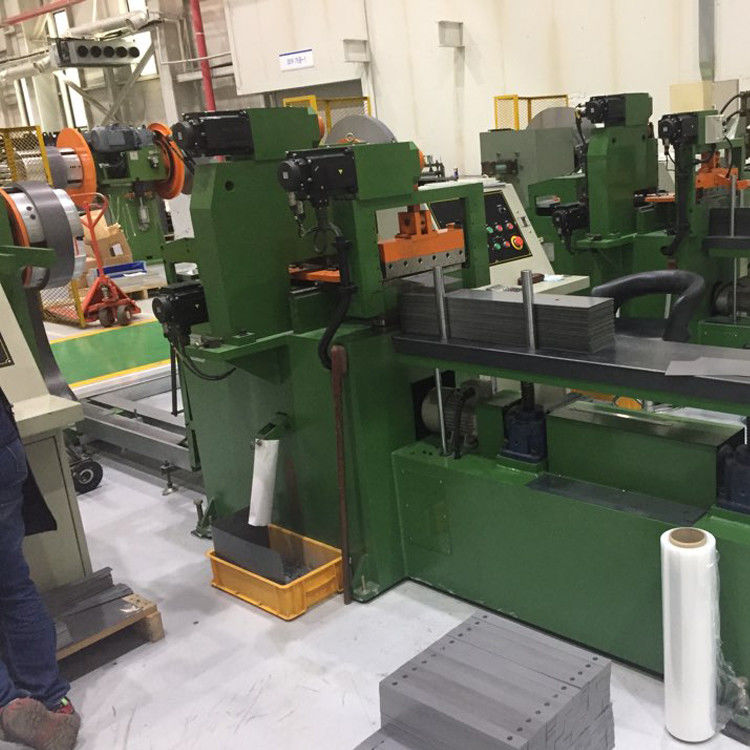

Fig 1: Automatic core cutting machine DHJ300's full view
Fig 2: Automatic core cutting machine DHJ300's punching unit
