Description of automatic core cutting machine DHJ400

Automatic core cutting machine DHJ400 is a special cutting machine. The core cutting machine is mainly used to cut silicon steel strip to make reactor cores and other similar products. The automatic core cutting machine can cut the silicon steel strip with maximum width 400mm. The automatic core cutting machine can also punch holes on the strip if needing. The automatic core cutting machine is driven by servo motor, which guarantees the accuracy of the cutting and punching operations. The automatic core cutting machine’s cutter blade adopts carbide cutter knife, this kind of knife is with HRC88 ~ 90 hardness, the blade does not need regrind unit cutting more than 5 million times. With a touch screen, the core cutting machine can be operated very easily.

Quick details of automatic core cutting machine DHJ400

• Cutting sheet thickness 0.23 ~ 0.35mm
• Cutting sheet width 40 ~ 400mm
• Cutting sheet length 10 ~ 9999mm
• Feeding sheet speed 180m/min
• Power 12.5kw
• One year warranty

Main components of automatic core cutting machine DHJ400

1.Decoiler for placing steel material

2.Main body of the machine

3.Feeding sheet unit

4.Hole punching device

5.Shearing unit

6.Stacking table

7.Control system

Main Parameters

Typical standard specifications of core cutting machine DHJ400 are shown below, however the core cutting machine can also be manufactured as requested.

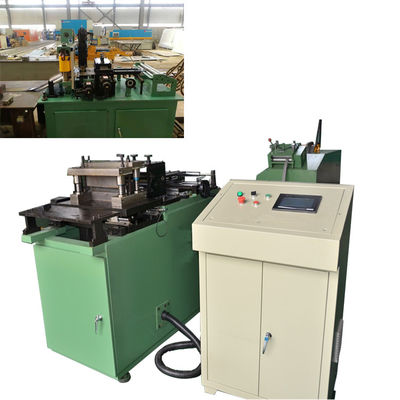

Fig 1: Core cutting machine DHJ400's full view

Fig 2: Core cutting machine DHJ400's decoiler
