Automatic Core Cutting Machine Silicon Steel Cutting Machine Make Reactor Core
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | Core Cutting Machines | Usage: | Making Reactor Cores |
|---|---|---|---|
| Cut Width: | 30 ~ 300mm | Cut Thickness: | 0.23 ~ 0.35mm |
| Speed: | 0 ~ 180m/min | Motor Power: | 10kw |
| Function: | Step Lap Cutting | Warranty Period: | 12 Months |
| Highlight: | Silicon Steel Core Cutting Machine,Reactor Core Cutting Machine,Automatic Core Cutting Machine |
||
Automatic Core Cutting Machine Silicon Steel Cutting Machine Make Reactor Core
Description of automatic core cutting machine DHJ300-BK
Automatic core cutting machine DHJ300-BK is a special cutter for cutting silicon steel to make legs of reactor cores. The core cutting machine is also known as reactor core cut to length line. The core cutting machine is provided with one head decoiler to put supplied silicon steel reel. With specialized cutting tools, the cutting machine can cut the strip according to the requirements. With PLC control system, the cutting machine features easy operation and so on.
Details of automatic core cutting machine DHJ300-BK
- Sheet thickness 0.23 ~ 0.35mm
- Sheet width 30 ~ 300mm
- Cutting length 10 ~ 9999mm
- Feeding speed 180m/min
- Motor power 10kw
- 12 months warranty
Parameters of automatic core cutting machine DHJ300-BK
Typical standard specifications of automatic core cutting machine DHJ300-BK are shown below and the core cutting machine can also be manufactured as requested.
| 1 | Working Platform Height: | 850mm |
| 2 | Decoiler Expanding Mode: | Manual or Hydraulic |
| 3 | Decoiler Expansion Range: | Ø470 ~ 508mm |
| 4 | Sheet Thickness: | 0.23 ~ 0.35mm |
| 5 | Sheet Width: | 30 ~ 300mm |
| 6 | Cutting Length: | 10 ~ 9999mm |
| 7 | Feeding Speed: | 180m/min |
| 8 | Feeding Tolerance: | ±0.05mm/m |
| 9 | Cutting Burring: | Less than 0.02mm |
| 10 | Motor Power: | 10kw |

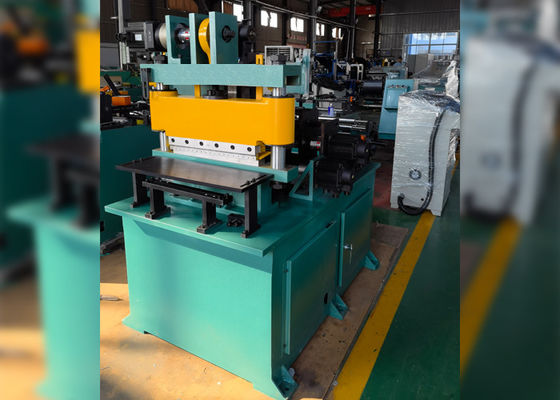

Fig 1: Automatic core cutting machine DHJ300's full view
Fig 2: Automatic core cutting machine DHJ300's punching unit
