Copper Wire Winder Semi Automatic Electric Motor Coil Winding Machine

Copper Wire Winder Semi Automatic Electric Motor Coil Winding Machine

Description of motor coil winding machine MW500

Motor coil winding machine MW500 is semi automatic wire winder and this kind of motor coil winding machine is mainly used for winding motor coils and other similar products. The motor coil winding machine is provided with a flange with diameter 500mm and a winding head can be mounted on the flange for winding coil. A foot pedal is provided for the motor coil winding machine to stop or start the coil winding machine. Moreover, the rotating direction of the motor coil winding machine can be switched through the foot pedal. The motor coil winding machine can be operated easily.

Details of motor coil winding machine MW500

• Winding copper or aluminium wire
• Maximum winding speed 200rpm
• Flange diameter 500mm
• Winding power 3kw
• One year warranty

Main Parameters

Typical standard specifications of motor coil winding machine MW500 are shown below and the motor coil winding machine can also be manufactured as requested.

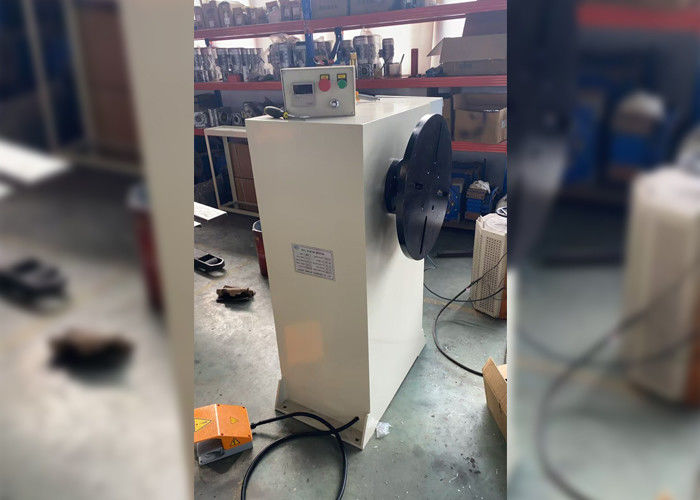

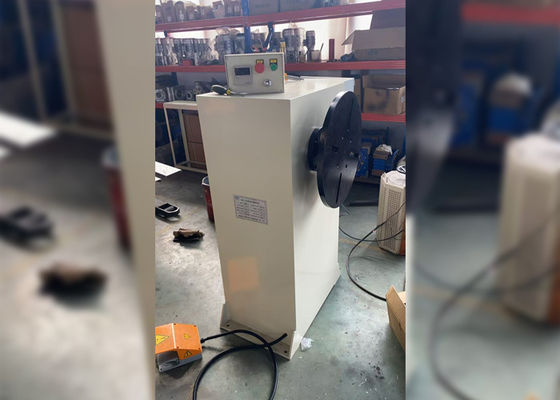

Fig 1: Motor coil winding machine MW500's full view

Fig 2: Motor coil winding machine MW500's control board
