Silicon Steel Cutter Automatic Step Lap Reactor Core Cutting Machine
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | Reactor Core Cutting Machine | Function: | Cutting Reactor Core's Legs |
|---|---|---|---|
| Strip Width: | 40 ~ 400mm | Strip Thickness: | 0.23 ~ 0.5mm |
| Feeding Strip Speed: | 0 ~ 180m/min | Motor Power: | 12.5kw |
| Machine Color: | As Requested | Warranty Period: | 12 Months |
| Control System: | PLC | Power Supply: | 380V/50HZ |
Silicon Steel Cutter Automatic Step Lap Reactor Core Cutting Machine
Description of automatic core cutting machine DHJ400-BK
Automatic reactor core cutting machine DHJ400-BK is a professional cutter to silicon steel strip to make reactor core limbs and other similar products. This type of automatic core cutting machine can cut different width of silicon steel and the width is from 40mm to 400mm. Moreover, the automatic core cutting machine can punch holes on the strip if needing. With servo motor, the automatic core cutting machine can make cutting and punching actions precisely. The automatic core cutting machine’s cutter blade adopts carbide cutter knife with HRC88 ~ 90 hardness. The cutter can cut the silicon steel 5 million times without being reground. The automatic core cutting machine is with step functions and can cut step lap strips. With PLC control system and HIM, the reactor core cutting machine can be operated easily.
Quick details of automatic core cutting machine DHJ400-BK
- Cutting sheet thickness 0.23 ~ 0.35mm
- Cutting sheet width 40 ~ 400mm
- Cutting sheet length 10 ~ 9999mm
- Feeding sheet speed 180m/min
- Power 12.5kw
- One year warranty
Main components of automatic core cutting machine DHJ400-BK
1.Decoiler for placing steel material
2.Frame
3.Feeding sheet unit
4.Hole punching device
5.Shearing unit
6.Stacking table
7.Control system
Main parameters of automatic core cutting machine DHJ400-BK
Typical standard specifications of automatic core cutting machine DHJ400-BK are shown below and the core cutting machine can also be manufactured as requested.
| 1 | Working Platform Height: | 900mm |
| 2 | Decoiler: | Hydraulic expanding |
| 3 | Decoiler Diameter Range: | Φ470 ~ Φ508mm |
| 4 | Cutting Sheet Thickness: | 0.23 ~ 0.35mm |
| 5 | Cutting Sheet Width: | 40 ~ 400mm |
| 6 | Cutting Sheet Length: | 10 ~ 9999mm |
| 7 | Feeding Sheet Speed: | 180m/min |
| 8 | Feeding Tolerance: | ±0.05mm/m |
| 9 | Height of Burr After Cutting: | Less than 0.02mm |
| 10 | AC Power: | 12.5kw |

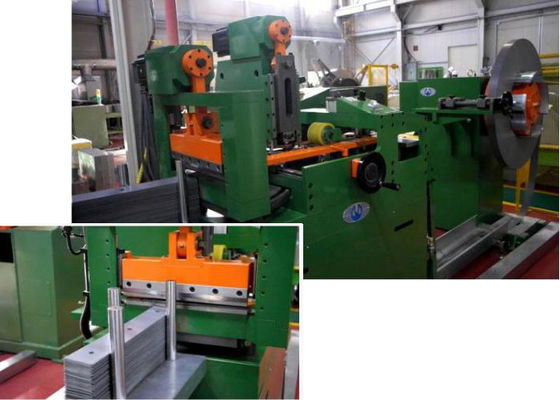

Fig 1: Automatic core cutting machine DHJ400's full view
Fig 2: Automatic core cutting machine DHJ400's punching unit
