Semi-Automatic Motor Coil Winding Machine With 5.5kw Rotating Power And Large 1500mm Winding Diameter

Máquina de enrolar bobinas de motor Semi Automatic Motor Coil Winding Machine

Introduction of motor coil winding machine MW1500

Motor coil winding machine MW1500 is a professional wire coiling machine for winding motor coils and other similar products. The motor coil winding machine is provided with a counter for counting the number of turns when winding. The winding speed of the motor coil winding machine can be adjusted through a potentiometer on the board. The motor coil winding machine can stop and start running through its foot pedal. The motor coil winding machine is equipped with adjustable movable blocks. The winding former can be fixed on the two movable blocks. The distance between the two blocks can be adjusted with rotating screw rod of the mold and the adjustment range is 200 ~1500mm.

Main components of motor coil winding machine MW1500

1.Main frame

2.Electric control cabinet

3.Foot pedal

Main parameters of motor coil winding machine MW1500

Typical standard specifications of motor coil winding machine MW1500 are shown below and the motor coil winding machine can also be manufactured as requested.

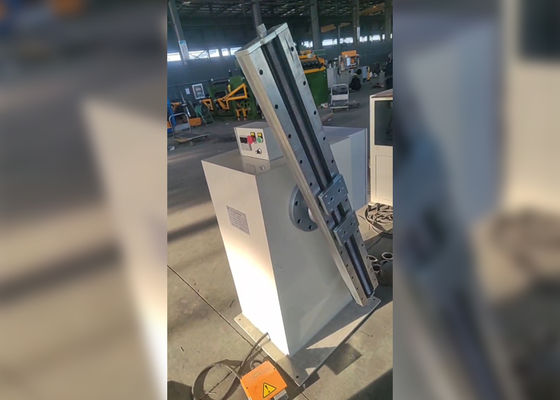

Fig 1: Motor coil winding machine MW1500's full view

Fig 2: Motor coil winding machine MW1500's control board
