Automatic Stepping Reactor Core Cutting Machine
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Name: | Core Cutting Machines | Function: | Making Reactor Cores |
|---|---|---|---|
| Sheet Width: | 30 ~ 300mm | Sheet Thickness: | 0.23 ~ 0.35mm |
| Feeding Speed: | 0 ~ 180m/min | Motor Power: | 10kw |
| Cutting: | Stepping | Warranty: | 12 Months |
| Highlight: | Stepping Reactor Core Cutting Machine,Automatic Stepping Reactor Core Cutter,Reactor automatic core cutter |
||
Automatic Stepping Reactor Core Cutting Machine
Description of automatic core cutting machine DHJ300-BK
Automatic core cutting machine DHJ300-BK is a professional cutting machine, which is mainly used to cut silicon steel strip to make legs of reactor cores and other similar products. The core cutting machine is provided with one head decoiler to put supplied silicon steel reel, the maximum loading capacity of the decoiler is 5000kgs. With specialized cutting tools, the cutting machine can cut the strip according to the requirements. With PLC control system, the cutting machine is with high automation. The reactor core cutting machine features smooth running, easy operation and so on.
Details of automatic core cutting machine DHJ300-BK
l Sheet thickness 0.23 ~ 0.35mm
l Sheet width 30 ~ 300mm
l Cutting length 10 ~ 9999mm
l Feeding speed 180m/min
l Motor power 10kw
l 12 months warranty
Parameters of automatic core cutting machine DHJ300-BK
Typical standard specifications of automatic core cutting machine DHJ300-BK are shown below and the core cutting machine can also be manufactured as requested.
|
1 |
Working Platform Height: |
850mm |
|
2 |
Decoiler Expanding Mode: |
Manual or Hydraulic |
|
3 |
Decoiler Expansion Range: |
Ø470 ~ 508mm |
|
4 |
Sheet Thickness: |
0.23 ~ 0.35mm |
|
5 |
Sheet Width: |
30 ~ 300mm |
|
6 |
Cutting Length: |
10 ~ 9999mm |
|
7 |
Feeding Speed: |
180m/min |
|
8 |
Feeding Tolerance: |
±0.05mm/m |
|
9 |
Cutting Burring: |
Less than 0.02mm |
|
10 |
Motor Power: |
10kw |

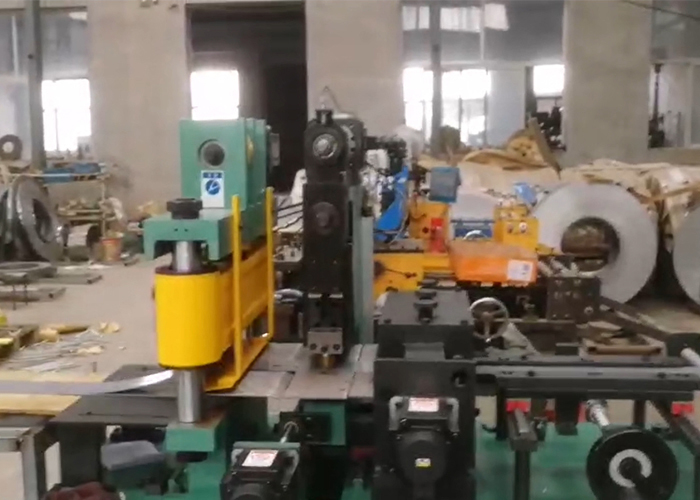

Fig 1: Automatic core cutting machine DHJ300's full view
Fig 2: Automatic core cutting machine DHJ300's punching unit
