Features
Specifications
Name: Motor Coil Winding Machine
Usage: Winding Motor Coil
Flange Diameter: Ø150mm
Machine Color: As Request
Winding Power: 2.2kw
Winding Speed: 0 ~ 400rpm
Machine Height: 1400mm
Warranty Period: 12 Months
Basic Infomation
Place of Origin: China
Brand Name: STT
Model Number: MW150
Payment & Shipping Terms
Packaging Details: seaworthy packing
Delivery Time: 20 days
Payment Terms: T/T,L/C
Supply Ability: 100 sets per year
Product Description

Electric Motor Winding Machine Semi Automatic Motor Coil Winding Machine




Description of motor coil winding machine MW150



Semi automatic motor coil winding machine MW150 is a special winder machine for winding motor coils and other similar products. The motor coil winding machine can wind copper wire or aluminium wire to make wire coil. The  motor coil winding machine is provided with a counter, which can count the number of turns when the machine is winding. With a potentiometer on the control board, the rotating speed of the motor coil winding machine can be adjusted. The motor coil winding machines rotating direction, i.e. forward and reverse, can be switched through the foot pedal. The motor coil winding machine




Quick details of motor coil winding machine

§ Slow starting

§ Smooth running

§ Strong pulling force

§ High speed

§ Simply structure

§ Easy operating


Main parameters of coil winding machine



Typical standard specifications of coil winding machine MW150 are shown below and the coil winding machine can also be manufactured as requested.



Total Height:

1400mm

Flange Diameter:

Ø150mm

Winding Speed:

0 ~ 400rpm

Counting Range:

0 ~ 9999.9

Max. Loading Capacity:

500KG

Motor Power:

2.2KW

Colour:

optional

Machine Dimension(LxWxH):

900x700x1400mm


Electric Motor Winding Machine Semi Automatic Motor Coil Winding Machine 0

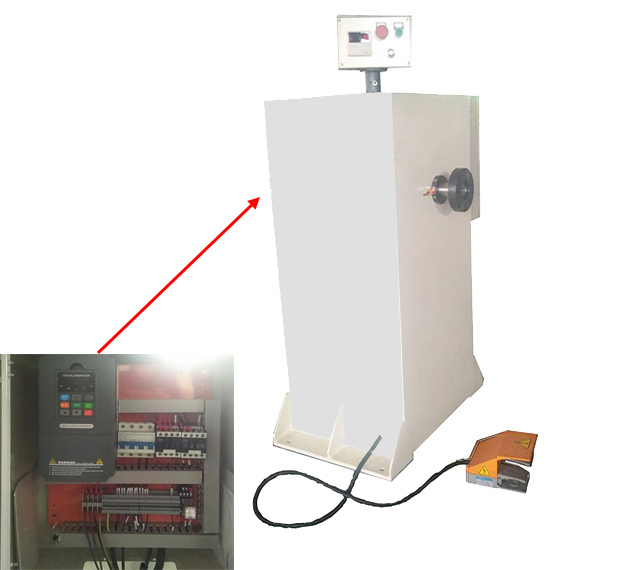

Fig 1: Motor coil winding machine MW150's full view


Electric Motor Winding Machine Semi Automatic Motor Coil Winding Machine 1

Fig 2: Motor coil winding machine MW150's controller


Electric Motor Winding Machine Semi Automatic Motor Coil Winding Machine 2Electric Motor Winding Machine Semi Automatic Motor Coil Winding Machine 3Electric Motor Winding Machine Semi Automatic Motor Coil Winding Machine 4Electric Motor Winding Machine Semi Automatic Motor Coil Winding Machine 5Electric Motor Winding Machine Semi Automatic Motor Coil Winding Machine 6Electric Motor Winding Machine Semi Automatic Motor Coil Winding Machine 7Electric Motor Winding Machine Semi Automatic Motor Coil Winding Machine 8

Electric Motor Winding Machine Semi Automatic Motor Coil Winding Machine 9

Electric Motor Winding Machine Semi Automatic Motor Coil Winding Machine 10
