Semi Automatic Electric Motor Coil Winding Machine

Semi Automatic Electric Motor Coil Winding Machine

Description of motor coil winding machine MW1200

Motor coil winding machine MW1200 is a professional winder equipment, which is mainly used to make motor coils or other similar products. The motor coil winding machine is provided with an adjustable mold for winding different sizes of coils. With a digital counter, the motor coil winding machine can count the number of turns when winding. The foot pedal of the motor coil winding machine can be used to switch the rotating direction. The motor coil winding machine features slow starting, smooth running and easy operation etc.

Quick details of motor coil winding machine MW1200

Motor power 4kw, Machine body height 1400mm, Winding speed 0 ~ 80rpm, Smooth running, Adjustable blocks, Simply structure

Main parameters of motor coil winding machine MW1200

Typical standard specifications of motor coil winding machine MW1200 are shown below and the motor coil winding machine can also be manufactured as requested.

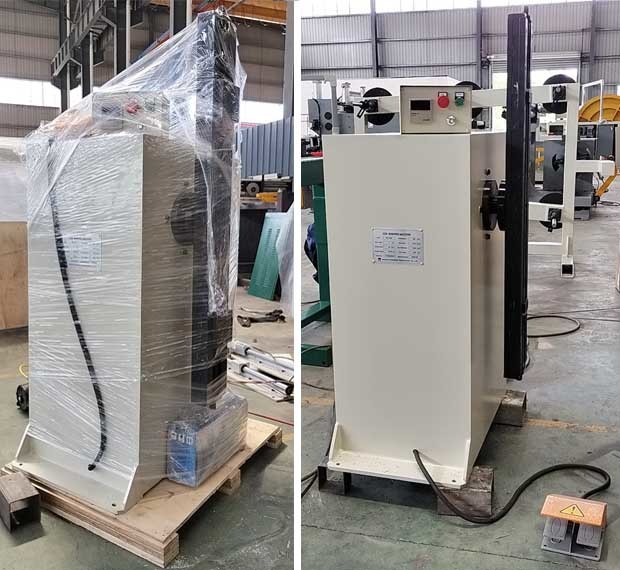

Fig 1: Motor coil winding machine MW1200's full view

Fig 2: Motor coil winding machine MW1200's control board
