MW600 Electric Motor Winding Machine with 200rpm Speed, 3kw Power, and Adjustable Mold for Stator Coils

The MW600 Electric Motor Stator Coil Winding Machine is a professional, dedicated winding device specially designed for manufacturing motor stator coils and other similar winding products. This kind of coil winding machine supports the winding of copper and aluminum wires of various specifications to produce finished stator coils that meet diverse production requirements. Equipped with a precision turn counter, the machine enables accurate real-time counting of winding turns. Additionally, the spacing between the two mold positioning blocks is adjustable, allowing compatibility with winding formers of different sizes to adapt to various stator processing standards. Boasting soft start, stable operation, high torque output and user-friendly operation, this winding machine delivers reliable performance for mass motor coil production.

• Soft & Safe Start: The machine starts at a low rotating speed to avoid wire damage and ensure safe, steady startup.
• Stable Operation: Adopting optimized mechanical structure and transmission design, the machine runs smoothly with consistent operating performance and low failure rate during continuous operation.
• Strong Traction Power: Fitted with a high-power drive motor, it provides powerful and stable traction to handle thick wire and heavy-load winding tasks effortlessly.
• High Winding Efficiency: The maximum winding speed can reach 200 rpm, balancing high processing efficiency and precise winding quality.
• Simple & Durable Structure: The streamlined mechanical structure minimizes vulnerable parts, greatly reducing daily maintenance difficulty and maintenance costs.
• Easy Operation: The operation process is simple and intuitive. Operators only need to set relevant process parameters and step on the foot pedal to start automatic winding, with low learning and operating threshold.

The following are the standard technical specifications of the MW600 stator coil winding machine. Customized configurations are available to meet customers’ special production needs.

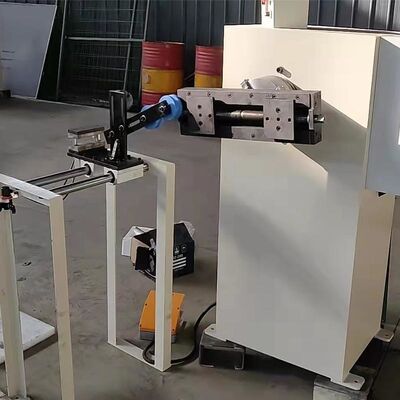

Fig 1: Motor coil winding machine MW800's full view

Fig 2: Motor coil winding machine MW800's control board
