600mm Wide Strip 0.23-0.35mm Thickness 200m/min Feeding Speed Transformer Core Cutting Machine Step-Lap Core Cutter

600mm Wide Silicon Steel Strip Step-Lap Transformer Core Cutting Machine

HJX600-LLB Step Lap Core Cutter Introduction

Model HJX600-LLB core cutting machine is an automatic silicon steel cutting machine specially engineered for transformer core production, designed to process silicon steel strips up to 600 mm in width. This professional double-shear and double-punch core cutting equipment fabricates transformer core laminations with full miter joints, half miter joints and straight joints. The finished laminations are compatible with transformers of various capacity and dimension specifications. All core motions including material feeding, punching and shearing are driven by high-precision servo motors. It delivers outstanding dimensional accuracy and high-level automation for stable, consistent lamination output.

Main Components

• Expandable hydraulic decoiler

• Strip feeding assembly

• Servo drive control system

• Punching station

• Shearing station

• Discharge conveyor platform

• Stacking & sorting unit

• Material gripper mechanism

• Motorized width adjustment system

• Pneumatic execution module

Technical Specifications

All standard specs below apply to HJX600-LLB; custom adjustments are available upon client requirements.

• Strip width tolerance: ≤ ±0.1 mm

• Cutting burr: ≤ 0.03 mm

• Strip camber: ≤ 0.1 mm per 1000 mm (single direction)

• Strip wave: ≤15 mm /1000 mm

• Silicon steel thickness: 0.23 ~ 0.35 mm

• Working strip width: 60 ~ 600 mm

• Cut length range: 350 ~ 9999 mm

• Punch hole diameter: Φ10 ~ 24 mm

• Hole position: bidirectional offset relative to centerline

• V-notch punching offset range: ±30 mm

• Feeding speed: 0 ~ 200 m/min

• Total installed power: 18 Kw

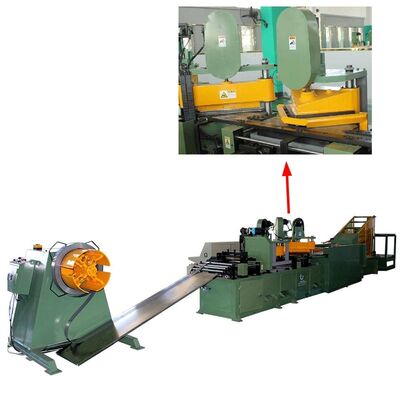

Fig 1: Transformer core cutting machine HJX600-LLB's full view

Fig 2: Transformer core cutting machine HJX600-LLB's side view
