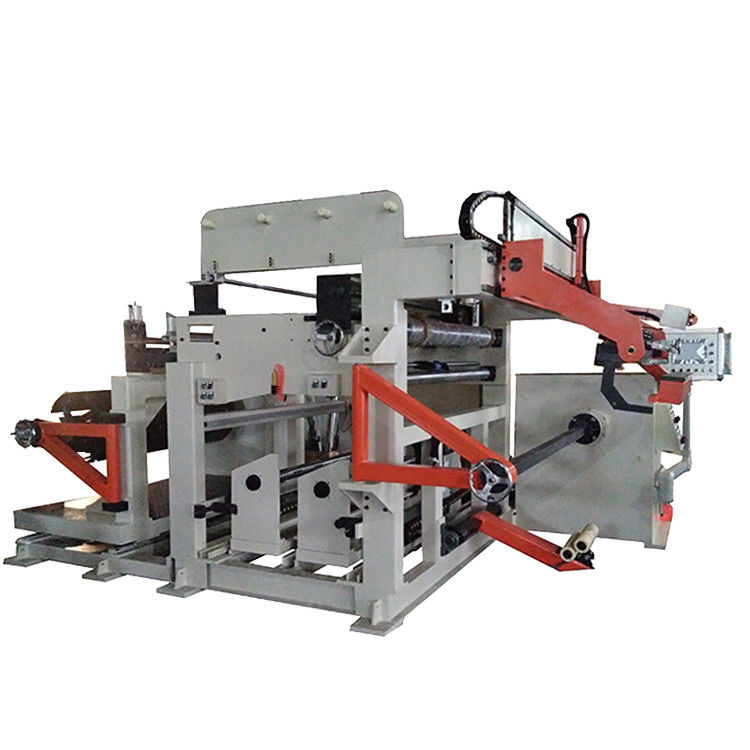

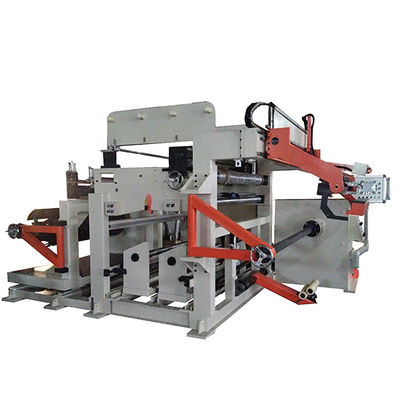

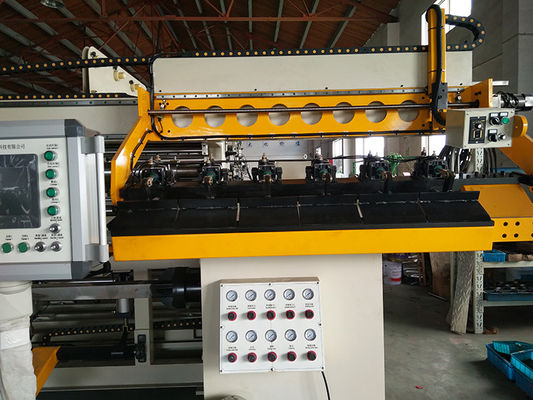

Dry Transformer Conductor Strip Winder Single Layer Foil Winding Machine

Dry Transformer Conductor Strip Winder Single Layer Foil Winding Machine

Dry Transformer Conductor Strip Winder Single Layer Foil Winding Machine
Dry Transformer Conductor Strip Winder Single Layer Foil Winding Machine Dry Transformer Conductor Strip Winder Single Layer Foil Winding Machine

Large Image :  Dry Transformer Conductor Strip Winder Single Layer Foil Winding Machine Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Certification: CE, etc
Model Number: BRJ1400
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 45 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Name: Copper Foil Winding Machine Application: Winding Foil Coil
Cu Foil Thickness: 0.2 - 2.0mm Al Foil Thickness: 0.3 - 3.0mm
Control System: PLC Foil Decoiler: 1 Set
Deburring: 1 Set Cleaning: 1 Set
High Light:

Dry Transformer Conductor Strip Winder

,

Single Layer Foil Winding Machine

,

STT Conductor Strip Winder

Dry Transformer Conductor Strip Winder Single Layer Copper Foil Winding Machine





Description of copper foil winding machine BRJ1400



LV transformer copper foil winding machine BRJ1400 is mainly used to wind dry type transformer foil coil. This kind of copper foil winding machine can handle one layer of copper or aluminium foil and one or two layers of insulation material, such as insulation paper. The max width of the conductor foil is 1400mm. The copper foil winding machine is provided with TIG welding machine and cooler to weld foil with bus bar together. One disc cutter is used to cut the foil. Moreover, the copper foil winding machine can be customized. For example, the foil decoiler is for conductor foil with inner diameter 500mm, if the conductor foil with different inner diameter is used, the expanding range of the foil decoiler can be mended as per the inner diameter of the conductor foil. If the foil thickness is too large, such as 4.0mm, which need use bigger motor to drive.





Quick details of copper foil winding machine

  • Slow starting
  • Smooth running
  • Tight winding
  • Neat foil coil edge
  • Strong rotating force
  • High automation



Main components of copper foil winding machine



  • Winding unit, 15kw motor to provide enough torque to wind the foil
  • Foil decoiler, one foil decoiler with 1450mm width
  • Insulation decoiler, for placing insulation paper
  • End filling strip feeder
  • Cleaning system
  • Cutting system
  • Burr removal system
  • Edge alignment system
  • Automatic welding unit
  • Electronic control system



Main parameters of copper foil winding machine



Typical standard specifications of copper foil winding machine BRJ1400 are shown below, however these can be easily modified as requested.

Foil width: 300-1,400mm
Max. Finished Coil OD.: 1,000mm
Finished Coil Shape: oval, circle and rectangular, etc
Max. Conductor Material OD.: 1,000mm
Conductor Material ID.: 500mm
Foil Decoiler Number: 1pc
Winding Shaft Size: 80×80×1750 mm
Welding Mode: TIG
Insulation Decoiler Number: 2 pcs
Max. Insulation Material OD.: 400mm
Insulation Material ID.: 76mm
Edge Alignment System: Photoelectric sensing automatic rectifying deviation
User Interface: 10inch (254mm) touch screen industrial PC / access controller
Counting Turns Range: 0 - 9999.9
