| Name: | Copper Foil Winding Machine | Application: | Making Reactor Coil |
|---|---|---|---|
| Al Strip Thickness: | 0.3 - 3.0mm | Cu Strip Thickness: | 0.2 - 2.0mm |
| Welding: | TIG | Control: | PLC |
| Color: | Optional | Warranty: | 1 Year |
| High Light: | Two Servo Motors Copper Foil Winding Machine,2.0mm transformer winding machine,2.0mm Copper Foil Winding Machine |
||
Two Servo Motors Driving Two Chucks TIG Welding Reactor Copper Foil Winding Machine
Description of copper foil winding machine BRJ600-2-2

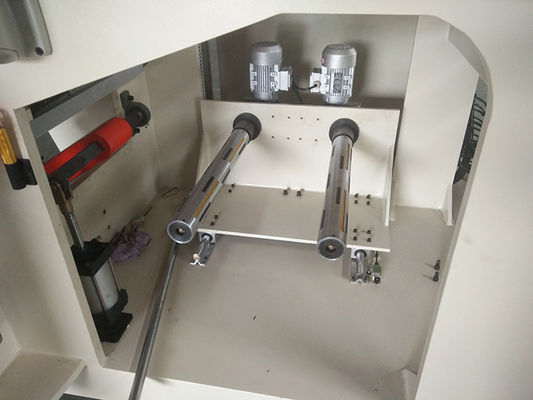

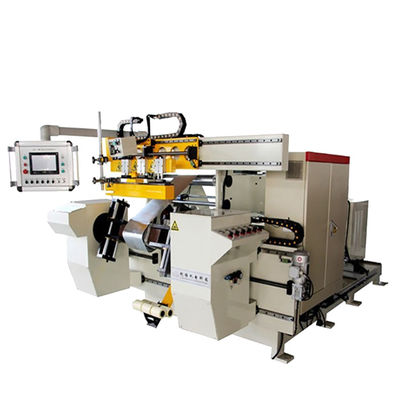

Reactor copper foil winding machine BRJ600-2-2 is mainly used to wind reactor foil coil and other similar products. The copper foil winding machine can handle the copper or aluminium foil with maximum width 600mm. The copper foil winding machine is provided with two servo motors to drive the two chucks. The two chucks is used to clamp the iron core and the copper foil or aluminium foil is wound on the core directly. The copper foil winding machine can handle one or two layers of copper or aluminium strip and one or two layers of insulation paper at the same time. With PLC control system, the copper foil winding machine can be controlled precisely, which guarantees the wound coil’s quality.
Quick Details of copper foil winding machine:
Technical Parameters of copper foil winding machine BRJ600-2-2
Typical standard specifications of BRJ600-2-2 are shown below, however these can be easily modified as requested.
| Foil width: | 250-600mm |
| Max. Finished Coil OD.: | 850mm |
| Finished Coil Shape: | Round, Rectangular, Oval, etc. |
| Conductor Strip Material: | Copper or Aluminum |
| Al Strip Thickness: | 0.3 - 3.0 mm |
| Cu Strip Thickness: | 0.2 - 2.0 mm |
| Foil Decoiler Number: | 2 pcs |
| Foil Decoiler Length: | 650mm |
| Foil Decoiler Expanding Range: | 420 ~ 520mm |
| Max. Coil Weight: | 1,000KG |
| Motor Power: | 5.5KW*2 |
| Max. Winding Speed: | 26 rpm |
| Welding System: | TIG |
| Insulation Decoiler Number: | 2 pcs |
| Insulation Decoiler Width: | 650mm |
| Insulation Decoiler Shaft: | pneumatic open/close action |
| Edge Alignment System: | Photoelectric sensing |
| Control System: | PLC |
| User interface: | 10 inches (254mm) touch screen |
| Counting Turn Range: | 0 - 9999.9 |
