120m/min Silicon Steel Transformer Core Cutting Machine Two Shearing Two Punching

120m/min Silicon Steel Transformer Core Cutting Machine Two Shearing Two Punching

120m/min Silicon Steel Transformer Core Cutting Machine Two Shearing Two Punching
120m/min Silicon Steel Transformer Core Cutting Machine Two Shearing Two Punching

Large Image :  120m/min Silicon Steel Transformer Core Cutting Machine Two Shearing Two Punching Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Certification: CE, etc
Model Number: HJX600-LL
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 90 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Name: Transforemr Core Cutting Machine Function: Cutting Silicon Steel
Processing: Two Cutting Two Punching Sheet Thickness: 0.23 ~ 0.35mm
Punching Hole: Φ10 ~ 24mm Feeding Speed: 120m/min
Color: Optional Warranty: 12 Months
High Light:

120m/min Transformer Core Cutting Machine

,

Transformer Core Cutting Machine

,

120m/min automatic core cutter

Automatic Silicon Steel Transformer Core Cutting Machine Two Shearing Two Punching





Description of transformer core cutting machine HJX600-LL



Automatic transformer core cutting machine HJX600-LL is one kind of double shearing and double punching type silicon steel cutting machine. The transformer core cutting machine can be used to cut and punch iron core sheet to make fully inclined seam, half inclined seam and straight seam transformer iron core laminating sheet, which can be used in small and medium sized transformers.





Quick details of transformer core cutting machine


1.one-end decoiler (hydraulic expanding tight,electric inversion)
2.Slopping feed device
3. Feeder (driven by servo motor, length-measuring device)
4. Punch unit
5.Shearing machine unit

6. Outlet platform
7. Depiler and sorting machines

8. Catching material machine

9. Whole line width adjusting system
10. Pneumatic system




Technical parameters of transformer core cutting machine



Typical standard specifications of transformer core cutting machine HJX600-LL are shown below, however this can be modified as requested.

Roll Material Width Tolerance: ≤±0.1mm
Roll Material Burr Length: ≤0.03mm
Roll Material S Degree Tolerance: single direction less than 0.1mm in 1000mm
Roll Material Wave Degree: ≤15mm/1000mm( span more than 1000mm, height less than 15mm)
Sheet Thickness: 0.23~‌0.35mm
Sheet Width: 60~600mm
Sheet Length: 350~9999mm
Punching Hole Dia. Φ 10mm~24mm
Punching Hole Position: can be bidirectional offset along the center line
V-notch Punching Eccentricity(along the center of the sheet): ±30mm
Feeding speed: 0~200m/min
Power: 18Kw



120m/min Silicon Steel Transformer Core Cutting Machine Two Shearing Two Punching 0

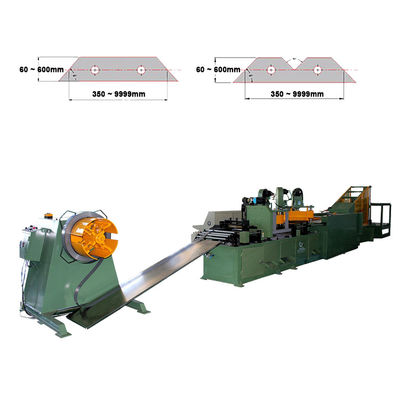

Fig 1: Transformer core cutting machine HJX600-LL's full view



120m/min Silicon Steel Transformer Core Cutting Machine Two Shearing Two Punching 1

Fig 2: Transformer core cutting machine HJX600-LL's side view

120m/min Silicon Steel Transformer Core Cutting Machine Two Shearing Two Punching 2120m/min Silicon Steel Transformer Core Cutting Machine Two Shearing Two Punching 3



120m/min Silicon Steel Transformer Core Cutting Machine Two Shearing Two Punching 4120m/min Silicon Steel Transformer Core Cutting Machine Two Shearing Two Punching 5120m/min Silicon Steel Transformer Core Cutting Machine Two Shearing Two Punching 6120m/min Silicon Steel Transformer Core Cutting Machine Two Shearing Two Punching 7120m/min Silicon Steel Transformer Core Cutting Machine Two Shearing Two Punching 8120m/min Silicon Steel Transformer Core Cutting Machine Two Shearing Two Punching 9120m/min Silicon Steel Transformer Core Cutting Machine Two Shearing Two Punching 10
