300mm Width Automatic Core Cutting Machine For Making Reactor Core

300mm Width Automatic Core Cutting Machine For Making Reactor Core

300mm Width Automatic Core Cutting Machine For Making Reactor Core
300mm Width Automatic Core Cutting Machine For Making Reactor Core

Large Image :  300mm Width Automatic Core Cutting Machine For Making Reactor Core Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Certification: CE
Model Number: DHJ300
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 90 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Product Name: Cut To Length Application: Making Reactor Cores
Sheet Width: 40-300mm Sheet Thickness: 0.23 ~ 0.35mm
Cutting Speed: 180m/min Power: 8kw
Color: As Requested Warranty: 12 Months
High Light:

Automatic Core Cutting Machine 180m/min

,

Making Reactor Core Cutting Machine

,

300mm Width Automatic Core Cutting Machine

Automatic Core Cutting Machine Cut To Length For Making Reactor Core





Description of automatic core cutting machine DHJ300



Automatic core cutting machine DHJ300 is mainly used to cut silicon steel sheet for making reactor core, which can punch holes on the core if needing. The automatic core cutting machine is provided with servo motor and the servo motor is used to drive cutting and punching action, which guarantees the accuracy of the action. The automatic core cutting machine features easy operation, high automation and so on.





Quick details of automatic core cutting machine DHJ300

  • Sheet thickness 0.23 ~ 0.35mm
  • Sheet width 40 ~ 300mm
  • Cutting length 10 ~ 9999mm
  • Feeding speed 180m/min
  • Motor power 8kw
  • 12 months warranty



Main parameters of automatic core cutting machine DHJ300



Typical standard specifications of automatic core cutting machine DHJ300 are shown below, however the automatic core cutting machine can also be manufactured as requested.

1 Working Platform Height: 850mm
2 Decoiler Expanding Mode: Hydraulic
3 Decoiler Expansion Range: 470 ~ 508mm
4 Sheet Thickness: 0.23 ~ 0.35mm
5 Sheet Width: 30 ~ 300mm
6 Cutting Length: 10 ~ 9999mm
7 Feeding Speed: 180m/min
8 Feeding Tolerance: ±0.05mm/m
9 Cutting Burring: Less than 0.02mm
10 Motor Power: 8kw



300mm Width Automatic Core Cutting Machine For Making Reactor Core 0

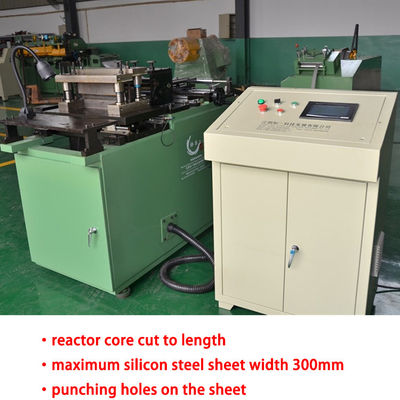

Fig 1: Automatic core cutting machine DHJ300's full view



300mm Width Automatic Core Cutting Machine For Making Reactor Core 1

Fig 2: Automatic core cutting machine DHJ300's decoiler



300mm Width Automatic Core Cutting Machine For Making Reactor Core 2300mm Width Automatic Core Cutting Machine For Making Reactor Core 3300mm Width Automatic Core Cutting Machine For Making Reactor Core 4300mm Width Automatic Core Cutting Machine For Making Reactor Core 5300mm Width Automatic Core Cutting Machine For Making Reactor Core 6300mm Width Automatic Core Cutting Machine For Making Reactor Core 7300mm Width Automatic Core Cutting Machine For Making Reactor Core 8300mm Width Automatic Core Cutting Machine For Making Reactor Core 9300mm Width Automatic Core Cutting Machine For Making Reactor Core 10
