Home ProductsCopper Foil Winding Machine

TIG Welding Reactor Copper Foil Winding Machine PLC Servo Motor Driven

TIG Welding Reactor Copper Foil Winding Machine PLC Servo Motor Driven

TIG Welding Reactor Copper Foil Winding Machine PLC Servo Motor Driven
TIG Welding Reactor Copper Foil Winding Machine PLC Servo Motor Driven

Large Image :  TIG Welding Reactor Copper Foil Winding Machine PLC Servo Motor Driven Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Certification: CE, etc
Model Number: BRJ600-2-2
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 45 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Product Name: Copper Foil Winding Machine Application: Making Reactor Coil
Al Strip Thickness: 0.3 - 3.0mm Cu Strip Thickness: 0.2 - 2.0mm
Welding: TIG Control: PLC
Color: Optional Warranty: 1 Year
High Light:

PLC Copper Foil Winding Machine

,

Servo Motor Copper Foil Winding Machine

,

TIG Welding Copper Foil Winding Machine

PLC Control Servo Motor Driven TIG Welding Reactor Copper Foil Winding Machine





Description of copper foil winding machine BRJ600-2-2

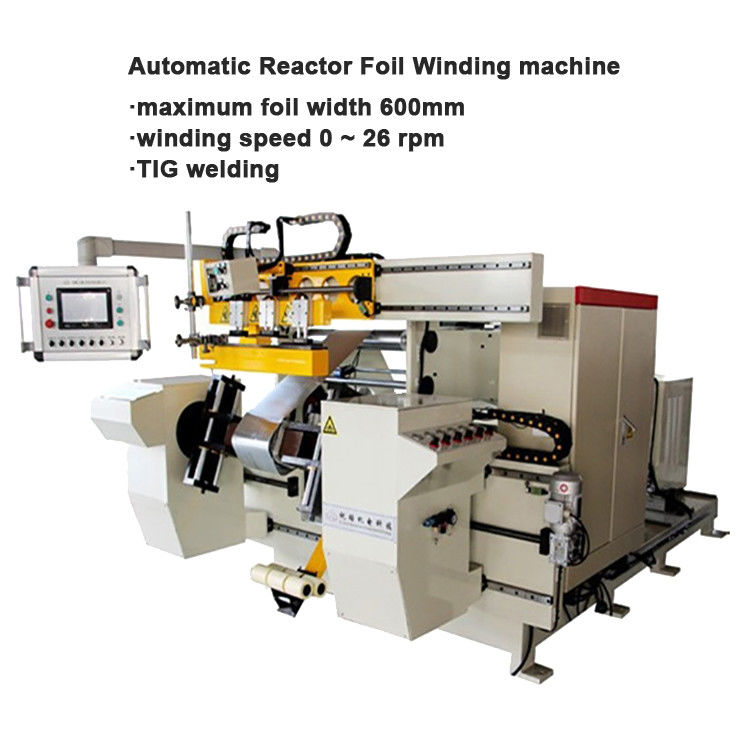

Reactor copper foil winding machine BRJ600-2-2 is a professional equipment for winding copper foil or aluminium foil to make reactor foil coil or other similar products. The copper foil winding machine is provided with two chucks. The two chucks are used to clamp iron core and the foil can be wound on the iron core directly. Two servo motors are adopted to drive the two chucks, which can get the same torque on the chucks. The copper foil winding machine is controlled by the control system based on PLC. The foil winding machine is provided with TIG welding unit for welding foil and bus bar together. With one touch screen and HMI, it is very easy to operate the copper foil winding machine.





Quick details of copper foil winding machine BRJ600-2-2

  • Two servo motors to provide big torque
  • Two chucks to clamp iron core
  • Foil material ID 500mm
  • Foil material OD 1000mm maximum
  • Winding speed 26rpm
  • Winding motor power 11kw
  • TIG welding unit
  • Customized color



Technical Parameters of copper foil winding machine BRJ600-2-2



Typical standard specifications of BRJ600-2-2 are shown below, however these can be easily modified as requested.

Foil width: 250-600mm
Max. Finished Coil OD.: 850mm
Finished Coil Shape: Round, Rectangular, Oval, etc.
Conductor Strip Material: Copper or Aluminum
Al Strip Thickness: 0.3 - 3.0 mm
Cu Strip Thickness: 0.2 - 2.0 mm
Foil Decoiler Number: 2 pcs
Foil Decoiler Length: 650mm
Foil Decoiler Expanding Range: 420 ~ 520mm
Max. Coil Weight: 1,000KG
Motor Power: 5.5KWx2
Max. Winding Speed: 26 rpm
Welding System: TIG
Insulation Decoiler Number: 2 pcs
Insulation Decoiler Width: 650mm
Insulation Decoiler Shaft: pneumatic open/close action
Edge Alignment System: Photoelectric sensing
Control System: PLC
User interface: 10 inches (254mm) touch screen
Counting Turn Range: 0 - 9999.9
