| Product Name: | Transformer Core Cutting Machine | Cutting Width: | 40 ~ 300mm |
|---|---|---|---|
| Cutting Thickness: | 0.23 ~ 0.35mm | Cutting Length: | 350 ~ 9999mm |
| Feeding Speed: | 120m Per Minute | Motor Power: | 9kw |
| Color: | As Requested | Warranty: | 12 Months |
| High Light: | PLC Control Transformer Core Cutting Machine,Transformer Core Cutting Machine 9kw,Punching Transformer Core Cutting Machine |
||
PLC Control Transformer Core Cutting Machine Tow Cutting And One Punching
Description of transformer core cutting machine HJX300
Automatic transformer core cutting machine HJX300 is a professional equipment to make transformer silicon steel sheet. These silicon steel sheet can be used to make transformer core. This model of transformer core cutting machine can cut the silicon steel strip with maximum width 300mm. One punching is used to make a V notch. The transformer core cutting machine is provided with servo motor, which make the action of the machine precise. PLC control system makes the machine have the programmable function. The transformer core cutting machine can be operated easily.
Main parameters of transformer core cutting machine HJX300
The standard specifications of transformer core cutting machine HJX300 is shown below, however, the transformer core cutting machine can also be manufactured as requested.
| Technical Specifications | HJX300 |
| Silicon steel thickness | 0.23 ~ 0.35mm |
| Steel width | 40 ~ 300mm |
| Cutting length | 350 ~ 9999mm |
| Feeding speed | 120 m/min |
| Cutting angle tolerance | ±0.025° |
| Cutting length tolerance | ±0.10mm |
| Cutting burring | ≤0.02mm |
| Total power | 9kw |

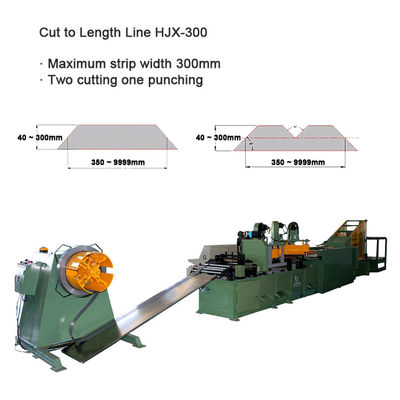

Fig 1: Transformer core cutting machine HJX300's full view
Fig 2: Transformer core cutting machine HJX300's side view
