Automatic Transformer Core Cutting Machine Cutting Silicon Steel For Lamination

Automatic Transformer Core Cutting Machine Cutting Silicon Steel For Lamination

Automatic Transformer Core Cutting Machine Cutting Silicon Steel For Lamination
Automatic Transformer Core Cutting Machine Cutting Silicon Steel For Lamination

Large Image :  Automatic Transformer Core Cutting Machine Cutting Silicon Steel For Lamination Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Certification: CE, etc
Model Number: HJX400
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 90 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Product Name: Transformer Core Cutting Machine Cutting Width: 40 ~ 400mm
Cutting Thickness: 0.23 ~ 0.35mm Cutting Length: 350 ~ 9999mm
Feeding Speed: 120m Per Minute Motor Power: 9kw
Color: As Requested Warranty: 12 Months
High Light:

Auto Transformer Core Cutting Machine

,

120 M/Min Transformer Core Cutting Machine

,

Lamination Transformer Core Cutting Machine

Automatic Transformer Core Cutting Machine Cutting Silicon Steel for Lamination





Description of transformer core cutting machine HJX400

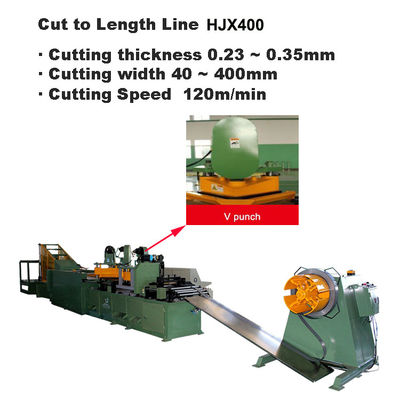

Transformer core cutting machine HJX400 is one model cut to length line for cutting silicon steel coil. The transformer core cutting machine is necessary production equipment for laminating transformer core. This kind of cut to length line can shear the silicon steel at the angle of 45 degree and 135 degree shear and make a V notching. With PLC control system, the transformer core cutting machine is very easy to be operated. The transformer core cutting machine features high speed, high stable performance, high precision, and so on.





Main parameters of transformer core cutting machine HJX400



The standard specifications of transformer core cutting machine HJX400 is shown below, however, the specifications can be modified as requested.

Technical Specifications HJX400
Silicon steel thickness 0.23 ~ 0.35mm
Steel width 40 ~ 400mm
Cutting length 350 ~ 9999mm
Feeding speed 120 m/min
Cutting angle tolerance ±0.025°
Cutting length tolerance ±0.10mm
Cutting burring ≤0.02mm
Total power 9kw



Automatic Transformer Core Cutting Machine Cutting Silicon Steel For Lamination 0

Fig 1: Transformer core cutting machine HJX400's full view



Automatic Transformer Core Cutting Machine Cutting Silicon Steel For Lamination 1

Fig 2: Transformer core cutting machine HJX400's side view



Automatic Transformer Core Cutting Machine Cutting Silicon Steel For Lamination 2Automatic Transformer Core Cutting Machine Cutting Silicon Steel For Lamination 3Automatic Transformer Core Cutting Machine Cutting Silicon Steel For Lamination 4Automatic Transformer Core Cutting Machine Cutting Silicon Steel For Lamination 5Automatic Transformer Core Cutting Machine Cutting Silicon Steel For Lamination 6Automatic Transformer Core Cutting Machine Cutting Silicon Steel For Lamination 7Automatic Transformer Core Cutting Machine Cutting Silicon Steel For Lamination 8















fIG
