Description of copper foil winding machine JJ-BRJ600-2-2

Máquina de enrolar folhas, copper foil winding machine JJ-BRJ600-2-2 is a simple and cheap foil winding machine to wind reactor foil coil. The copper foil winding machine can wind one or two layers of foil with max width 600mm and one or two layers of insulation paper. The counter of the copper foil winding machine is used to count the number of turns wound. The foot pedal can be used to switch the rotating direction of the main shaft. Mechanical rectifying system is used to make the foil edge neat when winding. It is easy to operate this kind of simple copper foil winding machine.


Main components of copper foil winding machine JJ-BRJ600-2-2

1.Main frame
2.Foil decoiler
3.Winding unit
4.Insulation decoiler
5.Pneumatic devices
6.Electrical control system


Technical parameters of copper foil winding machine JJ-BRJ600-2-2

Typical standard specifications of copper foil winding machine JJ-BRJ600-2-2 are shown below, however, these can be modified as requested.

Max. Foil Width:600 mm
Max. Rotating Diameter:Ø800 mm
Finished Coil Shape:rectangular, oval and circle, etc.
Foil Material:Copper or Aluminum
Al Foil Thickness:0.3 ~ 3.0 mm
Cu Foil Thickness:0.2 ~ 2.0 mm
Foil Material OD.:Ø1000 mm, maximum
Foil Material ID.:Ø500 mm, optional
Foil Decoiler Number:2 pcs
Foil Decoiler Length:650 mm
Foil Decoiler Diameter:Ø400 ~ 520mm
Max Coil Weight:800 kg
Motor Power:11kw
Rotating Speed:0 ~ 26 rpm
Insulation Decoiler Number:2 pcs
Insulation Material OD.:Ø400 mm, maximum
Insulation Material ID.:Ø76 mm
Insulation Material Width:850 mm
Insulation Decoiler Shaft:Expandable (pneumatic open/close action)
Counting Turn Range:0 - 9999.9


Simple Reactor Copper Type Foil Winding Machine with 0.2-2.0mm Cu strip 0

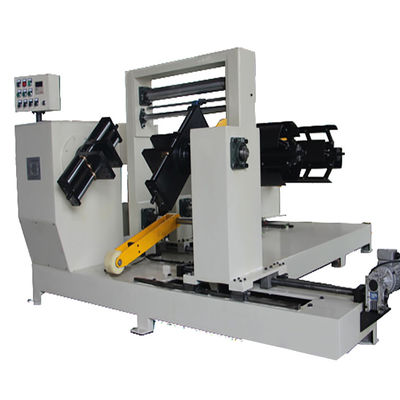

Fig 1: Copper foil winding machine JJ-BRJ600-2-2's front view
