Step Lap Cut To Length Line Transformer Core Cutting Machine Automatic

Step Lap Cut To Length Line Transformer Core Cutting Machine Automatic

Step Lap Cut To Length Line Transformer Core Cutting Machine Automatic
Step Lap Cut To Length Line Transformer Core Cutting Machine Automatic

Large Image :  Step Lap Cut To Length Line Transformer Core Cutting Machine Automatic Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Certification: CE, etc
Model Number: HJX800-LLB
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 90 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Name: Transformer Core Cutting Machine Cutting Width: 100 ~ 800mm
Cutting Thickness: 0.23 ~ 0.35mm Cutting Length: 350 ~ 9999mm
Feeding Speed: 120m Per Minute Motor Power: 9kw
Color: As Requested Warranty: 12 Months
High Light:

Electric Control Transformer Core Cutting Machine

,

Transformer Core Cutting Machine PLC Controlled

,

Transformer Core Cutting Machine Pneumatic

Step Lap Cut To Length Line Automatic Transformer Core Cutting Machine





Introduction of transformer core cutting machine HJX800-LLB



Transformer core cutting machne, also called cut to length line, HJX800-LLB is a special equipment for cutting silicon steel sheet to make transformer core. The machine is with two cutting and two punching functions to make the core with a special shape. Servo motor is adopted to drive the cutting and punching actions, which guarantees the precision of the actions. The machine is controlled by PLC based control system. Moreover, the machine is with two types, one is common type, another is step lap type. With HMI, it is very easy to operate the machine.





Main components of transformer core cutting machine HJX800-LLB



  • Two-end dereeler, hydraulic
  • Slopping feed device
  • Feeder
  • Punch unit
  • Shearing unit
  • Outlet platform
  • Width adjusting system
  • Pneumatic system
  • Electric control system


Technical parameters transformer core cutting machine HJX800-LLB

Typical standard specifications of transformer core cutting machine HJX800-LLB are shown below, however, the cutting machine can also be manufacted easily modified as requested.



Two-end coil dereeler capacity 4000kg/end
Supply coil ID Φ500mm
Maximum supply coil OD Φ1200mm
Cutting heads 45+ ,45- , and triangle
Cutting thickness 0.23 ~ 0.35 mm
Cutting width 100 ~ 800 mm
Cutting length 500 ~ 5000 mm
Punch diameters Φ10mm and Φ14mm, interchangeable
Maximum feeding speed 180 m/min
Cutting angle accuracy ±0.05°
Cutting length accuracy ±0.10 mm
Cutting burring ≤0.02 mm
Installation capacity 40 kw


Step Lap Cut To Length Line Transformer Core Cutting Machine Automatic 0

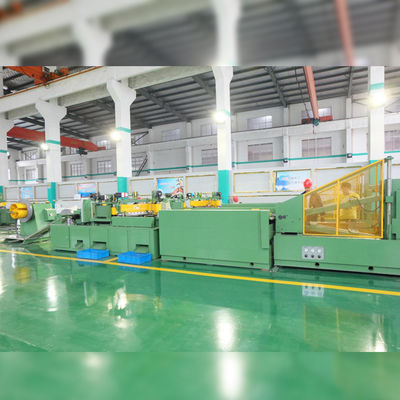

Fig 1: Transformer core cutting machine HJX300's full view
