Home ProductsCopper Foil Winding Machine

Electric Film Reactor Copper Foil Winding Machine PLC Control Programmable

Electric Film Reactor Copper Foil Winding Machine PLC Control Programmable

Electric Film Reactor Copper Foil Winding Machine PLC Control Programmable
Electric Film Reactor Copper Foil Winding Machine PLC Control Programmable

Large Image :  Electric Film Reactor Copper Foil Winding Machine PLC Control Programmable Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Model Number: BRJ800-2-2
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD40000 ~ 50000
Packaging Details: seaworthy packing
Delivery Time: 45 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Product Name: Copper Foil Winding Machine Function: Winding Reactor Foil Coil
Cu Foil Thickness: 0.2 ~ 2.0mm Al Foil Thickness: 0.3 ~ 3.0mm
Color: As Requested Warranty: 12 Months
Winding Speed: 0 ~ 24 Rpm Winding Power: 11kw
High Light:

Programmable Electric Film Winder

,

PLC Control Copper Foil Winder

,

Programmable Copper Foil Winder

Programmable Electric Film Winder Reactor Copper Foil Winding Machine With PLC Control





Description of copper foil winding machine BRJ800-2-2



Reactor copper foil winding machine BRJ800-2-2 is one kind of foil winding machines, which can be used to wind reactor foil coil. The copper foil winding machine is a core-clamping type foil winding machine, which can wind the foil on the core directly. The copper foil winding machine is provided with two servo motors to drive two chucks, which can guarantee two chucks to have the same torque. The copper foil winding machine can be used to wind one or two layers of copper or aluminium foil and one or two layers of insulation paper at the same time. The control system of copper foil winding machine is based on PLC. The copper foil winding machine features slow starting, smooth running and easy operation etc.





Quick details of copper foil winding machine BRJ800-2-2

  • Two chucks for clamping the iron core
  • Supply foil material ID 500mm
  • Maximum supply foil material OD 1000mm
  • Winding speed 0 ~ 20rpm
  • Winding power 11kw
  • TIG welding



Technical parameters of copper foil winding machine BRJ800-2-2



Typical standard specifications of copper foil winding machine BRJ800-2-2 are shown below, however, the copper foil winding machine can also be manufactured as requested.

Foil width: 250 ~ 800mm
Max. Finished Coil OD.: Ø800mm
Finished Coil Shape: Round, Rectangular, Oval, etc.
Conductor Foil Material: Copper or Aluminum
Al Foil Thickness: 0.3 ~ 3.0 mm
Cu Foil Thickness: 0.2 ~ 2.0 mm
Foil Decoiler Number: 2 pcs
Foil Decoiler Length: 850mm
Foil Decoiler Diameter: Adjustable range Ø400 ~ 520mm
Max. Coil Weight: 1,000KG
Motor Power: 5.5KW*2
Max. Winding Speed: 20rpm
Welding System: TIG
Insulation Decoiler Number: 2 pcs
Insulation Decoiler Width: 850mm
Insulation Decoiler Shaft: Expandable (pneumatic open/close action)
Edge Alignment System: Photoelectric sensing
Control System: PLC
User interface: 10 inches (254mm) touch screen
Counting Turn Range: 0 ~ 9999.9



Electric Film Reactor Copper Foil Winding Machine PLC Control Programmable 0

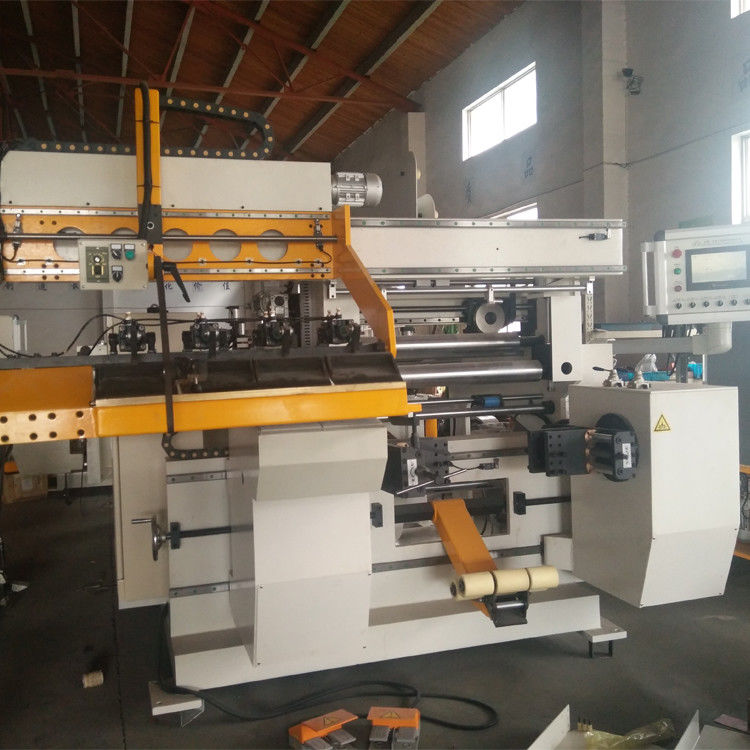

Fig 1: Copper foil winding machine BRJ800-2-2's front view



Electric Film Reactor Copper Foil Winding Machine PLC Control Programmable 1

Fig 2: Copper foil winding machine BRJ800-2-2's back view



Electric Film Reactor Copper Foil Winding Machine PLC Control Programmable 2Electric Film Reactor Copper Foil Winding Machine PLC Control Programmable 3

Electric Film Reactor Copper Foil Winding Machine PLC Control Programmable 4Electric Film Reactor Copper Foil Winding Machine PLC Control Programmable 5Electric Film Reactor Copper Foil Winding Machine PLC Control Programmable 6Electric Film Reactor Copper Foil Winding Machine PLC Control Programmable 7Electric Film Reactor Copper Foil Winding Machine PLC Control Programmable 8Electric Film Reactor Copper Foil Winding Machine PLC Control Programmable 9Electric Film Reactor Copper Foil Winding Machine PLC Control Programmable 10Electric Film Reactor Copper Foil Winding Machine PLC Control Programmable 11
