Automatic Transformer Core Cutting Machine For Step Lap Core

Automatic Transformer Core Cutting Machine For Step Lap Core

Automatic Transformer Core Cutting Machine For Step Lap Core
Automatic Transformer Core Cutting Machine For Step Lap Core

Large Image :  Automatic Transformer Core Cutting Machine For Step Lap Core Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Model Number: HJX400-LLB
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 90 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Name: Core Cutting Machines Cutting Mode: Step Lap
Cutting Thickness: 0.23 ~ 0.35mm Cutting Width: 40 ~ 400mm
Cutting Speed: 120m/min Warranty: 12 Months
Cutting Burring: Less Than 0.02mm Power: 15kw
High Light:

PLC Based Transformer Core Cutting Machine

,

Step Lap Core Cutter Machine

,

Step Lap Transformer Core Cutting Machine

Automatic Transformer Core Cutting Machine Step Lap Core Cutter Machine





Introduction of transformer core cutting machine HJX400-LLB



Transformer core cutting machine HJX400-LLB is a professional core cutter machine, which is mainly used to cut silicon steel to make transformer core. Servo motors are adopted to drive cutting and punching action, which can guarantee the action precision. PLC based control system is used to control the transformer core cutting machine. The transformer core cutting machine is step lap type, which can cut step lap silicon sheet for making transformer core. The transformer core cutting machine can cut the silicon steel with maximum width 400mm.





Main components of transformer core cutting machine HJX400-LLB

  • Two-end dereeler, hydraulic
  • Slopping feed device
  • Punch unit
  • Shearing unit
  • Outlet platform
  • Width adjusting system
  • Pneumatic system
  • Electric control system



Technical parameters of transformer core cutting machine HJX400-LLB



Typical standard specifications of HJX400-LLB are shown below, however, the transformer core cutting machine can also be manufactured as requested.



Two-end coil dereeler capacity 1000kg/end
Supply coil ID Φ500mm
Maximum supply coil OD Φ1200mm
Cutting heads 45+ ,45- , and triangle
Cutting thickness 0.23 ~ 0.35 mm
Cutting width 40 ~ 400 mm
Cutting length 350 ~ 9999 mm
Punch diameters Φ10mm, Φ14mm and Φ22mm, interchangeable
Maximum feeding speed 120 m/min
Cutting angle accuracy ±0.05°
Cutting length accuracy ±0.10 mm
Cutting burring ≤0.02 mm
Installation capacity 15 kw



Automatic Transformer Core Cutting Machine For Step Lap Core 0

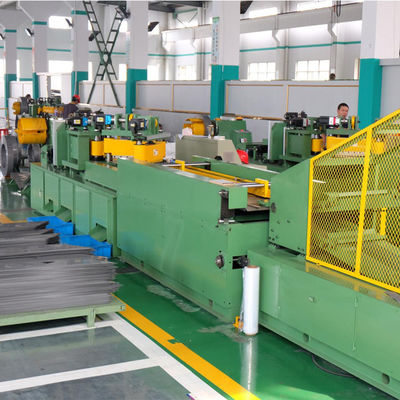

Fig 1:Cut to length line HJX400-LLB's side view



Automatic Transformer Core Cutting Machine For Step Lap Core 1

Fig 2: Cut to length line HJX400-LLB's coil dereeler



Automatic Transformer Core Cutting Machine For Step Lap Core 2Automatic Transformer Core Cutting Machine For Step Lap Core 3

Automatic Transformer Core Cutting Machine For Step Lap Core 4Automatic Transformer Core Cutting Machine For Step Lap Core 5Automatic Transformer Core Cutting Machine For Step Lap Core 6Automatic Transformer Core Cutting Machine For Step Lap Core 7Automatic Transformer Core Cutting Machine For Step Lap Core 8
