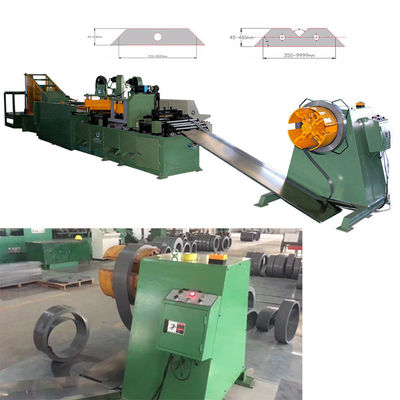

Silicon Steel Strip Automatic Transformer Core Cutting Machine PLC Control

Silicon Steel Strip Automatic Transformer Core Cutting Machine PLC Control

Silicon Steel Strip Automatic Transformer Core Cutting Machine PLC Control
Silicon Steel Strip Automatic Transformer Core Cutting Machine PLC Control

Large Image :  Silicon Steel Strip Automatic Transformer Core Cutting Machine PLC Control Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Certification: CE, etc
Model Number: HJX400
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 90 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Name: Cut To Length Line Sheet Width: 40 ~ 400mm
Sheet Thickness: 0.23 ~ 0.35mm Sheet Length: 350 ~ 9999mm
Feeding Speed: 120m Per Minute Motor Power: 9kw
Color: As Requested Warranty: 12 Months
High Light:

Silicon Steel Strip Transformer Core Machine

,

Silicon Steel Strip Cutter

,

PLC Control Transformer Core Machine

Silicon Steel Strip Cutter Automatic Transformer Core Cutting Machine With PLC Control





Description of transformer core cutting machine HJX400



Transformer core cutting machine HJX400 is a special cutter to cut silicon steel strip to make transformer core outer legs. The transformer core cutting machine is also called cut to length line. This kind of cut to length line can cut the silicon steel strip at the angle of 45 degree and 135 degree and make a V notching on the strip. With PLC control system, the transformer core cutting machine is very easy to be operated. The transformer core cutting machine features high speed, high stable performance, high precision, and so on.





Main parameters of transformer core cutting machine HJX400



The standard specifications of transformer core cutting machine HJX400 is shown below, however, the core cutting machine can also be manufactured as requested.

Technical Specifications HJX400
Silicon steel thickness 0.23 ~ 0.35mm
Steel width 40 ~ 400mm
Cutting length 350 ~ 9999mm
Feeding speed 120 m/min
Cutting angle tolerance ±0.025°
Cutting length tolerance ±0.10mm
Cutting burring ≤0.02mm
Total power 9kw



Silicon Steel Strip Automatic Transformer Core Cutting Machine PLC Control 0

Fig 1: Transformer core cutting machine HJX400's full view



Silicon Steel Strip Automatic Transformer Core Cutting Machine PLC Control 1

Fig 2: Transformer core cutting machine HJX400's side view



Silicon Steel Strip Automatic Transformer Core Cutting Machine PLC Control 2Silicon Steel Strip Automatic Transformer Core Cutting Machine PLC Control 3Silicon Steel Strip Automatic Transformer Core Cutting Machine PLC Control 4Silicon Steel Strip Automatic Transformer Core Cutting Machine PLC Control 5Silicon Steel Strip Automatic Transformer Core Cutting Machine PLC Control 6Silicon Steel Strip Automatic Transformer Core Cutting Machine PLC Control 7Silicon Steel Strip Automatic Transformer Core Cutting Machine PLC Control 8















fIG
