Automatic Core Cutting Machine Making Center Leg For Transformer Core

Automatic Core Cutting Machine Making Center Leg For Transformer Core

Automatic Core Cutting Machine Making Center Leg For Transformer Core
Automatic Core Cutting Machine Making Center Leg For Transformer Core

Large Image :  Automatic Core Cutting Machine Making Center Leg For Transformer Core Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Model Number: ZZ400
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 90 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Name: Core Cutting Machines Function: Making Transformer Center Post
Strip Width: 40 ~ 400mm Strip Thickness: 0.23 ~ 0.35mm
Cutting Speed: 180m/min Power: 14kw
Machine Color: Customizable Warranty: 12 Months
High Light:

Automatic Core Cutter Making Center Leg

,

Center Leg Automatic Core Cutter

,

180m/min Transformer Core Cutter

Automatic Core Cutting Machine Making Center Leg For Transformer core





Description of core cutting machine ZZ400



Automatic core cutting machine ZZ400 is a special cutter for cutting silicon steel strip and the cut strip can be used as center leg of transformer core. The core cutting machine can cut the silicon steel strip and the thickness of the strip is from 0.2mm to 0.35mm and maximum width of the silicon steel strip is 400mm. The core cutting machine is provided with a decoiler, which can be used to place supply silicon steel coil with inner diameter 500mm. The maximum capacity of the decoiler is 1500kgs. The feeding speed of the core cutting machine is 180m per minute. With one 14kw motor, the core cutting machine can provide big pulling force. The core cutting machine features running smoothly, easy operation and so on.





Quick details of automatic core cutting machine ZZ400

  • Silicon steel thickness 0.2 ~ 0.35mm
  • Silicon steel width 40 ~ 400mm
  • Cutting speed 180m/min
  • Motor power 14kw



Technical parameters of automatic core cutting machine ZZ400



Typical standard specifications of the cutting machine ZZ400 are shown below, however the cutting machine can also be manufactured as requested.

Roll Material Width Tolerance: ≤±0.1mm
Cutting Burr Length: ≤0.02mm
Silicon Steel Thickness: 0.2 ~ ‌0.35mm
Silicon Steel Width: 40 ~ 400mm
Cutting Length: 150 ~ 2500mm
Feeding Speed: 0 ~ 180m/min
Motor Power: 14Kw



Automatic Core Cutting Machine Making Center Leg For Transformer Core 0

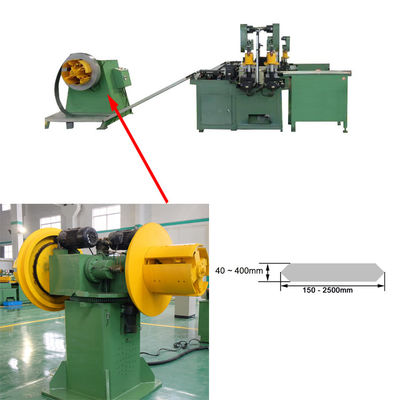

Fig 1: Core cutting machine ZZ400's full view



Automatic Core Cutting Machine Making Center Leg For Transformer Core 1

Fig 2: Core cutting machine ZZ400's cutter unit



Automatic Core Cutting Machine Making Center Leg For Transformer Core 2Automatic Core Cutting Machine Making Center Leg For Transformer Core 3Automatic Core Cutting Machine Making Center Leg For Transformer Core 4Automatic Core Cutting Machine Making Center Leg For Transformer Core 5

Automatic Core Cutting Machine Making Center Leg For Transformer Core 6

Automatic Core Cutting Machine Making Center Leg For Transformer Core 7

Automatic Core Cutting Machine Making Center Leg For Transformer Core 8Automatic Core Cutting Machine Making Center Leg For Transformer Core 9Automatic Core Cutting Machine Making Center Leg For Transformer Core 10
