Description of copper foil winding machine BRJ800-2-2

Copper foil winding machine BRJ800-2-2 is a special equipment to wind copper or aluminium foil. The copper foil winding machine is a core clamping foil winding machine, which is suitable for winding reactor foil coils and other similar products. This kind of copper foil winding machine adopts servo motors for two drive stocks separately to make two chucks have the same torque and ensure the drive stocks to wind foil synchronously. Two layers of copper or aluminium foil and two layers of insulation paper can be handled by this kind of foil winding machine. Moreover, the functions of the copper foil winding machine can be customized as requested.

Main components of copper foil winding machine BRJ800-2-2

• Main frame: The frame is welded with steel, which is very strong;
• Foil decoiler: This kind of foil winding machine is provided with two foil decoilers;
• Pressing roller: The pressing roller is for feeding the foil before winding and pressing the foil after winding;
• Winding unit: Two 5.5kw servo motors are used to wind the foil;
• Insulation decoiler: 2 pcs;
• Edge alignment system: Photoelectric sensor is used to make the edge alignment;
• Automatic welding unit: TIG.
• Pneumatic unit: providing force for brake and pressing roller, etc.
• Electrical Control System: including PLC, VFD, and other LV electric components..
• Foot pedal: can be used to switch the rotating direction of the winding shaft.

Technical parameters of copper foil winding machine BRJ800-2-2

Typical standard specifications of BRJ800-2-2 are shown below, however, the foil winding machine can also be manufactured as requested.

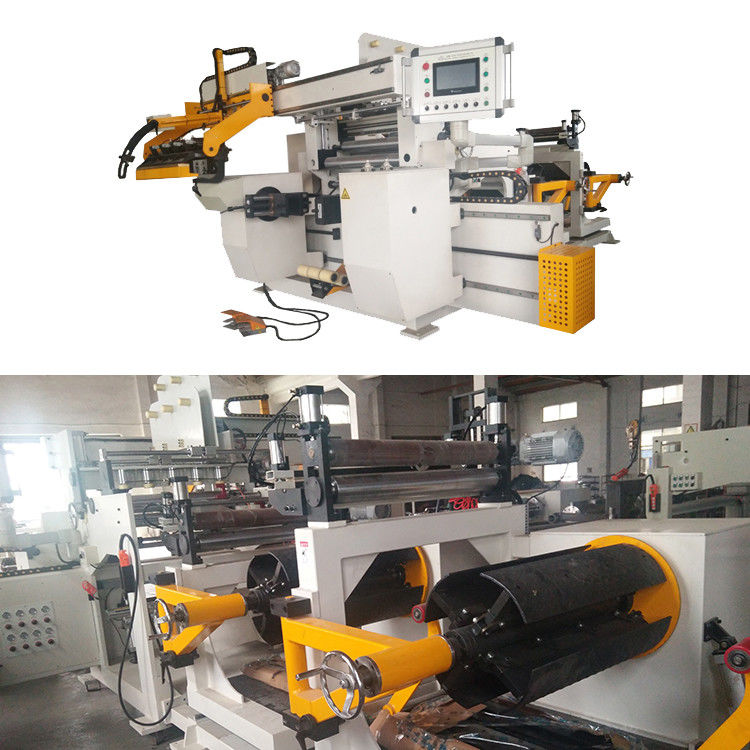

Fig 1: Copper foil winding machine BRJ800-2-2's front view

Fig 2: Copper foil winding machine BRJ800-2-2's back view
