| Product Name: | Core Cutting Machines | Cutting Mode: | Step Lap |
|---|---|---|---|
| Strip Thickness: | 0.23 ~ 0.35mm | Strip Width: | 40 ~ 400mm |
| Cutting Speed: | 0 ~ 120m/min | Warranty Period: | 12 Months |
| Cutting Burring: | Less Than 0.02mm | Power: | 15kw |
| High Light: | step lap transformer core cutting machine,15kw transformer core cutting machine |
||
Automatic Step Lap Transformer Core Cutting Machine Cut To Length Making Transformer Core
Introduction of transformer core cutting machine HJX400-LLB
Transformer core cutting machine HJX400-LLB is a special cutter for cutting silicon steel strip to make transformer core. This model of transformer core cutting machine can cut the strip with width from 40mm to 400mm. With servo motor driving, the transformer core cutting machine can do different actions precisely. The cutting machine’s control system is based on PLC, which makes the machine can achieve automation, which means, after presetting the corresponding parameters, the transformer core cutting machine can run automatically according to the parameters preset. The cutting machine features high automation and easy operation, etc.
Main components of transformer core cutting machine HJX400-LLB
Technical parameters of transformer core cutting machine HJX400-LLB
Typical standard specifications of HJX400-LLB are shown below, however, the transformer core cutting machine can also be manufactured as requested.
| Two-end coil dereeler capacity | 1000kg/end |
| Supply coil ID | Φ500mm |
| Maximum supply coil OD | Φ1200mm |
| Cutting heads | 45+ ,45- , and triangle |
| Cutting thickness | 0.23 ~ 0.35 mm |
| Cutting width | 40 ~ 400 mm |
| Cutting length | 350 ~ 9999 mm |
| Punch diameters | Φ10mm, Φ14mm and Φ22mm, interchangeable |
| Maximum feeding speed | 120 m/min |
| Cutting angle accuracy | ±0.05° |
| Cutting length accuracy | ±0.10 mm |
| Cutting burring | ≤0.02 mm |
| Installation capacity | 15 kw |

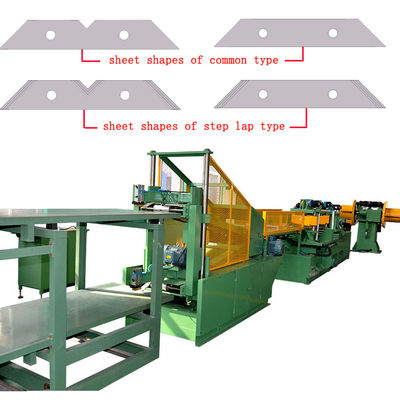

Fig 1:Cut to length line HJX400-LLB's side view
Fig 2: Cut to length line HJX400-LLB's coil dereeler
