Home ProductsCopper Foil Winding Machine

Copper Foil Winding Machine Cold Pressure Making Reactor Coil

Copper Foil Winding Machine Cold Pressure Making Reactor Coil

Copper Foil Winding Machine Cold Pressure Making Reactor Coil
Copper Foil Winding Machine Cold Pressure Making Reactor Coil

Large Image :  Copper Foil Winding Machine Cold Pressure Making Reactor Coil Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Certification: CE
Model Number: BRJ300-2-2
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 45 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Name: Copper Foil Winding Machine Foil Width: 100 ~ 300mm
Foil Decoiler: 2 Pcs Welding Mode: Cold Pressure Welding
Foil Thickness: 0.2 ~ 3.0mm Correct: Photoelectric
Power: 5.5kw Rotating Speed: 0 ~ 35rpm
Machine Color: Customized Warranty Period: 12 Months
High Light:

Copper Foil Winding Machine Cold Pressure

,

Copper Foil Cold Pressure Welding Unit

,

Reactor Coil Copper Foil Winding Machine

Copper Foil Winding Machine Cold Pressure Welding Unit Making Reactor Coil





Description of copper foil winding machine BRJ300-2-2



Copper foil winding machine BRJ300-2-2 is an automatic sheet winder. This copper foil winding machine is mainly used to wind both copper foil and aluminium foil, which can make reactor coils and other similar products. With servo motors, PLC control system and cold welding unit, the copper foil winding machine can weld different material together, such as welding aluminium foil with copper bus bar together. The copper foil winding machine can wind one or two layers of foil and it can also wind one or two layers of insulation paper at the same time. The copper foil winding machine features slow starting, smooth running, high automation, full function and easy operation etc.





Quick detail of copper foil winding machine BRJ300-2-2



  • Winding copper or aluminium foil
  • Foil material ID 500mm
  • Foil material OD 1000mm, maximum
  • Winding speed 35rpm
  • Winding power 5.5kw
  • Automatic cold welding
  • Servo motor driven
  • 12 months warranty



Main components of copper foil winding machine BRJ300-2-2



  • Main frame
  • Foil decoiler
  • Winding unit
  • Insulation decoiler
  • Edge alignment system
  • Automatic cold welding unit
  • Pneumatic unit
  • Electrical control system



Technical parameters of copper foil winding machine BRJ300-2-2



Typical standard specifications of copper foil winding machine BRJ300-2-2 are shown below, however, the foil winding machine can also be manufactured as requested.



Max. Foil Width: 300mm
Finished Coil OD. ( excl. Bus bar ): 500mm
Finished Coil OD. ( incl. Bus bar ): 600mm
Conductor Foil Material: Copper or aluminum
Cu Foil Material Thickness: 0.2 ~ 2.0mm
Al Foil Material Thickness: 0.3 ~ 3.0mm
Foil Material ID.: Ø 500mm
Foil Material OD.: Ø 1000mm, maximum
Conductor Decoiler Number: 2 pcs
Conductor Decoiler Length: 350mm
Conductor Decoiler Expanding Range: Ø 420 ~ 520mm
Max Coil Weight: 700kg
Rectifying Mode: Photoelectric sensing
Cleaning Unit Control Mode pneumatic
Insulation Paper Decoiler Number: 2 sets
Insulation Paper Coil OD.: Ø 400mm, maximum
Insulation Paper Coil ID.: Ø 76mm
Insulation Decoiler Width 350mm
Insulation Paper Decoiler Shaft: Expandable (pneumatic open/close action)
Winding Speed: 0 ~ 35 RPM
Winding Power of Servo Motor: 5.5kw
Cold Welding Device: 1 set
Counting Range: 0 ~ 9999.9



Copper Foil Winding Machine Cold Pressure Making Reactor Coil 0

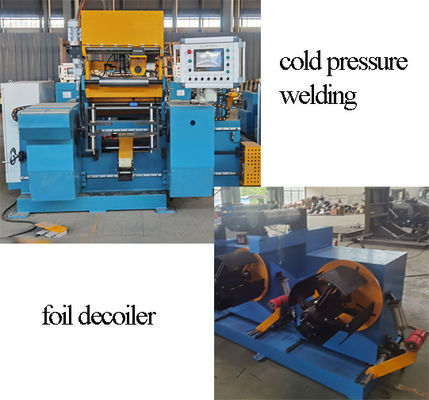

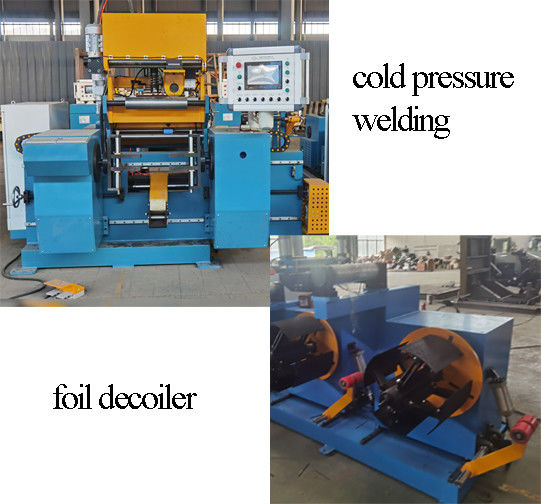

Fig 1: Copper foil winding machine BRJ300-2-2's front view



Copper Foil Winding Machine Cold Pressure Making Reactor Coil 1

Fig 2: Copper foil winding machine BRJ300-2-2's cutter



Copper Foil Winding Machine Cold Pressure Making Reactor Coil 2Copper Foil Winding Machine Cold Pressure Making Reactor Coil 3Copper Foil Winding Machine Cold Pressure Making Reactor Coil 4Copper Foil Winding Machine Cold Pressure Making Reactor Coil 5Copper Foil Winding Machine Cold Pressure Making Reactor Coil 6Copper Foil Winding Machine Cold Pressure Making Reactor Coil 7Copper Foil Winding Machine Cold Pressure Making Reactor Coil 8
