PLC Automatic Copper Foil Winding Machine 0 ~ 24 Rpm

PLC Automatic Copper Foil Winding Machine 0 ~ 24 Rpm

PLC Automatic Copper Foil Winding Machine 0 ~ 24 Rpm
PLC Automatic Copper Foil Winding Machine 0 ~ 24 Rpm

Large Image :  PLC Automatic Copper Foil Winding Machine 0 ~ 24 Rpm Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Model Number: BRJ1000-2-2
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD40000 ~ 50000
Packaging Details: seaworthy packing
Delivery Time: 45 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Name: Copper Foil Winding Machine Function: Winding Reactor Foil Coil
Cu Foil Thickness: 0.2 ~ 3.0mm Al Foil Thickness: 0.2 ~ 3.0mm
Machine Color: As Requested Warranty Period: 12 Months
Rotating Speed: 0 ~ 24 Rpm Winding Power: 11kw
High Light:

Automatic Foil Sheet Winder

,

Copper Foil Winding Machine 11kw

,

reactor foil coil Copper Winding Machine

Automatic Foil Sheet Winder Copper Foil Winding Machine Winding Foil Machine





Description of copper foil winding machine BRJ1000-2-2



Copper foil winding machine BRJ1000-2-2 is a special foil sheet winder. The kind of copper foil winding machine is mainly used to wind copper or aluminium foil to make reactor coils or other similar products. The copper foil winding machine is a core clamping foil winding machine and the foil and insulation paper are wound on the core directly. The copper foil winding machine adopts servo motors for two drive stocks separately to make two chucks have the same torque and ensure the drive stocks to wind foil synchronously. Two layers of copper or aluminium foil and two layers of insulation paper can be wound by this kind of foil winding machine. Moreover, the functions of the copper foil winding machine can be customized as requested.





Main components of copper foil winding machine BRJ1000-2-2



  • Strong main frame, welded with steel;
  • Two foil decoilers for placing foil conductor material;
  • Pressing roller, for feeding the foil before winding and pressing the foil after winding;
  • Two 5.5kw servo motors for winding foil;
  • Two Insulation decoilers for placing insulation paper;
  • Edge alignment system to correct the position of the foil when winding;
  • TIG welding unit;
  • Pneumatic for brake and pressing roller, etc;
  • Electrical control system is based on PLC, and;
  • Foot pedal: can be used to switch the rotating direction of the winding shaft.



Technical parameters of copper foil winding machine BRJ1000-2-2



Typical standard specifications of BRJ1000-2-2 are shown below, however, the foil winding machine can also be manufactured as requested.

Foil width: 200 ~ 1000mm
Max. Finished Coil OD.: 800mm
Finished Coil Shape: Round, Rectangular, Oval, etc.
Conductor Foil Material: Copper or Aluminum
Aluminium Foil Thickness: 0.3 ~ 3.0 mm
Copper Foil Thickness: 0.2 ~ 2.0 mm
Foil Decoiler Number: 2 pcs
Foil Decoiler Length: 1050mm
Foil Decoiler Expanding Range: 400 ~ 520mm
Max. Coil Weight: 2,000KG
Welding System: TIG
Insulation Decoiler Number: 2 pcs
Control System: PLC
User interface: 10 inches (254mm) touch screen
Counting Turn Range: 0 ~ 9999.9



PLC Automatic Copper Foil Winding Machine 0 ~ 24 Rpm 0

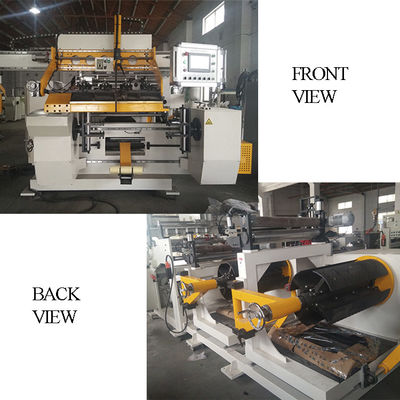

Fig 1: Copper foil winding machine BRJ1000-2-2's front view



PLC Automatic Copper Foil Winding Machine 0 ~ 24 Rpm 1

Fig 2: Copper foil winding machine BRJ1000-2-2's back view



PLC Automatic Copper Foil Winding Machine 0 ~ 24 Rpm 2PLC Automatic Copper Foil Winding Machine 0 ~ 24 Rpm 3

PLC Automatic Copper Foil Winding Machine 0 ~ 24 Rpm 4PLC Automatic Copper Foil Winding Machine 0 ~ 24 Rpm 5PLC Automatic Copper Foil Winding Machine 0 ~ 24 Rpm 6PLC Automatic Copper Foil Winding Machine 0 ~ 24 Rpm 7PLC Automatic Copper Foil Winding Machine 0 ~ 24 Rpm 8PLC Automatic Copper Foil Winding Machine 0 ~ 24 Rpm 9PLC Automatic Copper Foil Winding Machine 0 ~ 24 Rpm 10PLC Automatic Copper Foil Winding Machine 0 ~ 24 Rpm 11
