Automatic Silicon Steel Cut To Length Making Transformer Iron Core

Automatic Silicon Steel Cut To Length Making Transformer Iron Core

Automatic Silicon Steel Cut To Length Making Transformer Iron Core
Automatic Silicon Steel Cut To Length Making Transformer Iron Core

Large Image :  Automatic Silicon Steel Cut To Length Making Transformer Iron Core Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Model Number: HJX600
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 90 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Name: Transformer Core Cutting Machine Sheet Width: 40 ~ 600mm
Sheet Thickness: 0.23 ~ 0.35mm Cutting Length: 350 ~ 9999mm
Feeding Speed: 120m Per Minute Motor Power: 11kw
Machin Color: As Requested Warranty Period: 12 Months
High Light:

120m per minute Transformer Core cutter

,

Silicon Steel transformer core cutting machine

,

120m/minute transformer core cutting machine

Automatic Silicon Steel Cut To Length Making Transformer Iron Core





Description of transformer core cutting machine HJX600



Transformer core cutting machine HJX600 is a professional cutter, which is mainly used to cut silicon steel strip. The cut strip can be used to make transformer core legs. This kind of transformer core cutting machine can cut the silicon steel with maximum width 600mm. The transformer core cutting machine, also called cut to length, can be used to cut the strip at the angle 45 degree and 135 degree, which can punch V notching on the strip. The control system is based on PLC, which guarantees the precision of the machine’s action. The transformer core cutting machine features high automation, easy operation and so on.





Main parameters of transformer core cutting machine HJX600



The standard specifications of transformer core cutting machine HJX600 is shown below, however, the specifications can be modified as requested.

Technical Specifications HJX600
Silicon steel thickness 0.23 ~ 0.35mm
Steel width 40 ~ 600mm
Cutting length 350 ~ 9999mm
Feeding speed 120 m/min
Cutting angle tolerance ±0.025°
Cutting length tolerance ±0.10mm
Cutting burring ≤0.02mm
Total power 11kw



Automatic Silicon Steel Cut To Length Making Transformer Iron Core 0

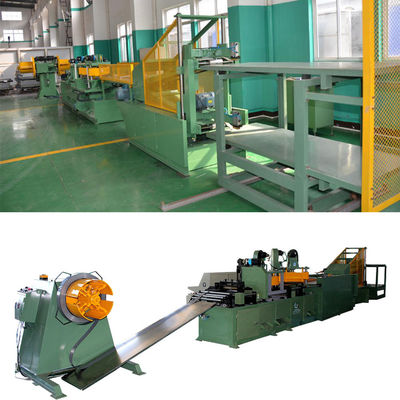

Fig 1: Transformer core cutting machine HJX600's full view



Automatic Silicon Steel Cut To Length Making Transformer Iron Core 1

Fig 2: Transformer core cutting machine HJX600's side view



Automatic Silicon Steel Cut To Length Making Transformer Iron Core 2Automatic Silicon Steel Cut To Length Making Transformer Iron Core 3Automatic Silicon Steel Cut To Length Making Transformer Iron Core 4Automatic Silicon Steel Cut To Length Making Transformer Iron Core 5Automatic Silicon Steel Cut To Length Making Transformer Iron Core 6Automatic Silicon Steel Cut To Length Making Transformer Iron Core 7

Automatic Silicon Steel Cut To Length Making Transformer Iron Core 8Automatic Silicon Steel Cut To Length Making Transformer Iron Core 9Automatic Silicon Steel Cut To Length Making Transformer Iron Core 10
