Silicon Steel Strip Cut Making Core Center Leg Automatic Core Cutting Machine

Silicon Steel Strip Cut Making Core Center Leg Automatic Core Cutting Machine

Silicon Steel Strip Cut Making Core Center Leg Automatic Core Cutting Machine
Silicon Steel Strip Cut Making Core Center Leg Automatic Core Cutting Machine

Large Image :  Silicon Steel Strip Cut Making Core Center Leg Automatic Core Cutting Machine Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Model Number: ZZ300-BK
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 90 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Name: Transformer Core Cutting Machines Usage: Making Transformer Central Limb
Strip Width: 40 ~ 300mm Strip Thickness: 0.23 ~ 0.35mm
Feeding Speed: 180m/min Power: 14kw
Machine Color: Customizable Warranty Period: 12 Months
High Light:

180m/min automatic core cutter machine

,

Center Leg Automatic Core Cutting Machine

,

Silicon Steel Strip Cut Making Machine

Silicon Steel Strip Cut Making Core Center Leg Automatic Core Cutting Machine





Description of transformer core cutting machine ZZ300-BK

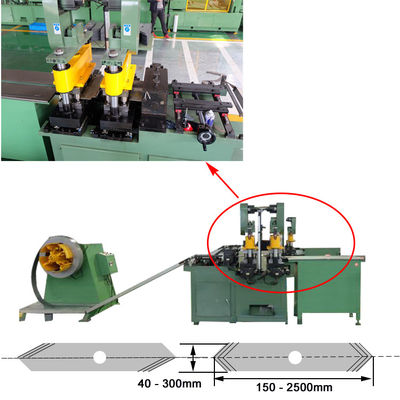

Transformer core cutting machine ZZ300-BK is a professional equipment, which is mainly used to cut silicon steel to make transformer core’s center legs. This core cutting machine can cut the strip in step by step manner. The core cutting machine can cut the silicon steel strip with maximum width 300mm. Moreover, the core cutting machine can punch holes on the strip as requested. With different parameters entered through a touch screen, the transformer core cutting machine can be used to cut different shapes of the core legs, for instance, the equilateral core center legs, eccentric center core legs and so on. With PLC control system and a touch screen, the transformer core cutting machine can be operated very easily.





Quick details of transformer core cutting machine ZZ300-BK



  • Cutting sheet thickness 0.2 ~ 0.35mm
  • Cutting sheet width 40 ~ 300mm
  • Feeding speed 180m/min
  • Power 14kw



Technical parameters of transformer core cutting machine ZZ300-BK



Typical standard specifications of transformer core cutting machine ZZ300-BK are shown below, however, the transformer core cutting machine can be manufactured as requested.

Roll Material Width Tolerance: ≤±0.1mm
Roll Material Burr Length: ≤0.02mm
Cutting Thickness: 0.2~‌0.35mm
Cutting Width: 40~300mm
Cutting Length: 150~2500mm
Feeding Speed: 0~180m/min
Total Power: 14Kw



Silicon Steel Strip Cut Making Core Center Leg Automatic Core Cutting Machine 0

Fig 1: Automatic core cutting machine ZZ300's full view



Silicon Steel Strip Cut Making Core Center Leg Automatic Core Cutting Machine 1

Fig 2: Automatic core cutting machine ZZ300's side view



Silicon Steel Strip Cut Making Core Center Leg Automatic Core Cutting Machine 2Silicon Steel Strip Cut Making Core Center Leg Automatic Core Cutting Machine 3Silicon Steel Strip Cut Making Core Center Leg Automatic Core Cutting Machine 4Silicon Steel Strip Cut Making Core Center Leg Automatic Core Cutting Machine 5

Silicon Steel Strip Cut Making Core Center Leg Automatic Core Cutting Machine 6Silicon Steel Strip Cut Making Core Center Leg Automatic Core Cutting Machine 7Silicon Steel Strip Cut Making Core Center Leg Automatic Core Cutting Machine 8Silicon Steel Strip Cut Making Core Center Leg Automatic Core Cutting Machine 9
