High Precision Copper Foil Winding Machine BRJ300-2 With PLC Control

High Precision Copper Foil Winding Machine BRJ300-2 With PLC Control

High Precision Copper Foil Winding Machine BRJ300-2 With PLC Control
High Precision Copper Foil Winding Machine BRJ300-2 With PLC Control

Large Image :  High Precision Copper Foil Winding Machine BRJ300-2 With PLC Control Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Certification: CE
Model Number: BRJ300-2
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 45 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Product Name: Copper Foil Winding Machine Max. Foil Width: 300mm
Max. Winding Speed: 35 Rpm Foil Thickness: 0.2 ~ 3.0mm
Power Consumption: 5.5KW Power Supply: AC380V 50Hz
Machine Color: As Requested Warranty: 12 Months
High Light:

Plc Auto Winding Machine

,

High Precision Copper Foil Winding Machine

,

Copper Foil Winding Machine 35 rpm

High Precision Copper Foil Winding Machine BRJ300-2 with PLC Control


Description of foil winding machine BRJ300-2

Copper foil winding machine BRJ300-2 is a professioinal foil strip winder equipment, which is mainly used to wind both copper foil and aluminium foil to make cast resin transformer coils. The copper foil winding machine is provided with cold pressure welding unit. This kind of cold pressure welding unit can weld different material, i.e. welding aluminium foil and copper bus bar together or welding copper foil and aluminium bus bar together, and so on. With two sets of foil decoilers and insulation decoilers, the copper foil winding machine can wind one or two layers of copper foil and wind one or two layers of insulation paper. The copper foil winding machine features slow starting, smooth running, precise action and so on. With a touch screen and PLC control system, the copper foil winding machine can be operated easily.


Main components of copper foil winding machine BRJ300-2

1. Main steel welded frame
2. Two foil decoilers
3. Two foil feeder
4. Pressing roller
5. Winding unit
6. PLC based control system
7. Pneumatic system
8. Cold pressure welding unit


Technical parameters of copper foil winding machine BRJ300-2

Typical standard specifications of copper foil winding machine BRJ300-2 are shown below, however, the copper foil winding machine can also be manufactured as requested.


Foil width:100 ~ 300mm
Finished Coil Shape:Oval, circle, and rectangular etc.
Conductor Foil Material:Copper or Aluminum
Al Foil Thickness:0.3 ~ 3.0 mm
Cu Foil Thickness:0.2 ~ 2.0 mm
Foil Decoiler:2 pcs
Foil Decoiler Length:350 mm
Foil Decoiler Diameter Range:Ø400 ~ 520mm
Maximum Coil Weight:750 KG
Pressing Roller:2 set
Adjusting Speed Mode:Stepless adjustable
Rotating Speed:0 ~ 35 rpm
Insulation Decoiler Number:2 pcs
Insulation Decoiler:350mm
Insulation Decoiler Shaft:Expandable (pneumatic open/close action)
Programming Type:PLC
Touch Screen:10inch (254mm)
Counting Range:0 ~ 9999.9


High Precision Copper Foil Winding Machine BRJ300-2 With PLC Control 0

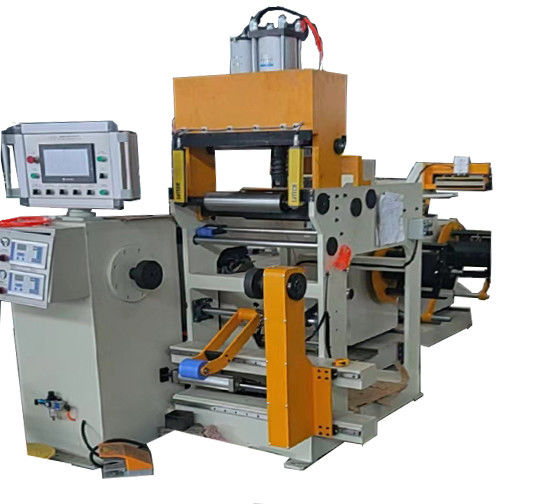

Fig 1: Copper foil winding machine BRJ300-2's front view

High Precision Copper Foil Winding Machine BRJ300-2 With PLC Control 1
Fig 2: Copper foil winding machine BRJ300-2's cold pressure welding unit

High Precision Copper Foil Winding Machine BRJ300-2 With PLC Control 2High Precision Copper Foil Winding Machine BRJ300-2 With PLC Control 3High Precision Copper Foil Winding Machine BRJ300-2 With PLC Control 4High Precision Copper Foil Winding Machine BRJ300-2 With PLC Control 5High Precision Copper Foil Winding Machine BRJ300-2 With PLC Control 6High Precision Copper Foil Winding Machine BRJ300-2 With PLC Control 7High Precision Copper Foil Winding Machine BRJ300-2 With PLC Control 8High Precision Copper Foil Winding Machine BRJ300-2 With PLC Control 9
