Cold Pressure Welding Copper Foil Winding Machine BRJ300-2-2 For Reactor Coils

Cold Pressure Welding Copper Foil Winding Machine BRJ300-2-2 For Reactor Coils

Cold Pressure Welding Copper Foil Winding Machine BRJ300-2-2 For Reactor Coils
Cold Pressure Welding Copper Foil Winding Machine BRJ300-2-2 For Reactor Coils

Large Image :  Cold Pressure Welding Copper Foil Winding Machine BRJ300-2-2 For Reactor Coils Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Certification: CE
Model Number: BRJ300-2-2
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 45 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Machine Name: Copper Foil Winding Machine Foil Width: 100 ~ 300mm
Insulation Decoiler: 2 Pcs Welding Unit: Cold Pressure Welding
Copper Foil Thickness: 0.2 ~ 2.0mm Aluminium Foil Thickness: 0.3 ~ 3.0mm
Motor Power: 5.5kw Winding Speed: 0 ~ 35rpm
Machine Color: As Requested Warranty Period: 12 Months
High Light:

Cold Pressure Welding Copper Foil Winder

,

Reactor Coils Foil Winding Machine

Cold Pressure Welding Copper Foil Winding Machine BRJ300-2-2 for Reactor Coils





Description of copper foil winding machine BRJ300-2-2



Copper foil winding machine BRJ300-2-2 is one kind of reactor foil winding machines. The copper foil winding machine is equipped with servo motors, PLC control system, cold welding unit, photoelectric correction unit, foil decoiler, insulation decoiler and so on. This kind of automatic foil winder can wind both copper foil and aluminium foil, which can make reactor coils and other similar products.  With the cold pressure welding unit, the copper foil winding machine can weld aluminium foil with copper bus bar together and weld copper foil and aluminium bus bar together. All parameters can be entered through the touch screen. The copper foil winding machine starts winding very slowly for safety. It is very easy to operate the copper foil winding machine.





Quick detail of copper foil winding machine BRJ300-2-2

  • Winding copper or aluminium foil
  • Foil material ID 500mm
  • Foil material OD 1000mm, maximum
  • Winding speed 35rpm
  • Winding power 5.5kw
  • Automatic cold welding
  • Servo motor driven
  • 12 months warranty



Main components of copper foil winding machine BRJ300-2-2



  • Main frame
  • Foil decoiler
  • Winding unit
  • Insulation decoiler
  • Edge alignment system
  • Automatic cold welding unit
  • Pneumatic unit
  • Electrical control system



Technical parameters of copper foil winding machine BRJ300-2-2



Typical standard specifications of copper foil winding machine BRJ300-2-2 are shown below, however, the foil winding machine can also be manufactured as requested.



Max. Foil Width: 300mm
Finished Coil OD. ( excl. Bus bar ): 500mm
Finished Coil OD. ( incl. Bus bar ): 600mm
Conductor Foil Material: Copper or aluminum
Cu Foil Material Thickness: 0.2 ~ 2.0mm
Al Foil Material Thickness: 0.3 ~ 3.0mm
Foil Material ID.: Ø 500mm
Foil Material OD.: Ø 1000mm, maximum
Conductor Decoiler Number: 2 pcs
Conductor Decoiler Length: 350mm
Conductor Decoiler Expanding Range: Ø 420 ~ 520mm
Max Coil Weight: 700kg
Rectifying Mode: Photoelectric sensing
Cleaning Unit Control Mode pneumatic
Insulation Paper Decoiler Number: 2 sets
Insulation Paper Coil OD.: Ø 400mm, maximum
Insulation Paper Coil ID.: Ø 76mm
Insulation Decoiler Width 350mm
Insulation Paper Decoiler Shaft: Expandable (pneumatic open/close action)
Winding Speed: 0 ~ 35 RPM
Winding Power of Servo Motor: 5.5kw
Cold Welding Device: 1 set
Counting Range: 0 ~ 9999.9



Cold Pressure Welding Copper Foil Winding Machine BRJ300-2-2 For Reactor Coils 0

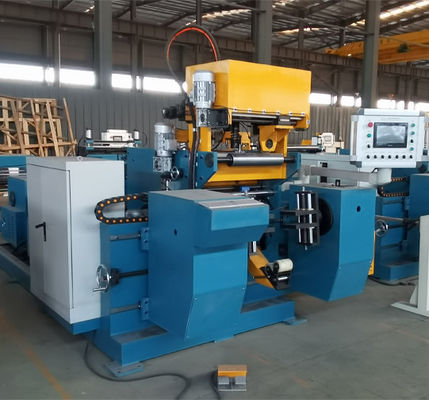

Fig 1: Copper foil winding machine BRJ300-2-2's front view



Cold Pressure Welding Copper Foil Winding Machine BRJ300-2-2 For Reactor Coils 1

Fig 2: Copper foil winding machine BRJ300-2-2's cutter



Cold Pressure Welding Copper Foil Winding Machine BRJ300-2-2 For Reactor Coils 2Cold Pressure Welding Copper Foil Winding Machine BRJ300-2-2 For Reactor Coils 3Cold Pressure Welding Copper Foil Winding Machine BRJ300-2-2 For Reactor Coils 4Cold Pressure Welding Copper Foil Winding Machine BRJ300-2-2 For Reactor Coils 5Cold Pressure Welding Copper Foil Winding Machine BRJ300-2-2 For Reactor Coils 6Cold Pressure Welding Copper Foil Winding Machine BRJ300-2-2 For Reactor Coils 7Cold Pressure Welding Copper Foil Winding Machine BRJ300-2-2 For Reactor Coils 8
