High Automation Reactor Copper Foil Winding Machine With Two Chucks

High Automation Reactor Copper Foil Winding Machine With Two Chucks

High Automation Reactor Copper Foil Winding Machine With Two Chucks
High Automation Reactor Copper Foil Winding Machine With Two Chucks

Large Image :  High Automation Reactor Copper Foil Winding Machine With Two Chucks Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Certification: CE
Model Number: BRJ600-2-2
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 45 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Product Name: Copper Foil Winding Machine Usage: Winding Reactor Coil
Al Strip Thickness: 0.3 ~ 3.0mm Cu Strip Thickness: 0.2 ~ 2.0mm
Welding Mode: TIG Motor Power: 11kw
Machine Color: Optional Warranty Period: 12 Months
High Light:

High Automation Reactor Copper Foil Winder

,

Two Chucks Copper Foil Winding Machine

High Automation Reactor Copper Foil Winding Machine With Two Chucks





Description of copper foil winding machine BRJ600-2-2



Reactor Foil Winding Machine is a specialized piece of equipment designed for efficiently winding foils onto reactor cores. This kind of copper foil winding machine can be used to wind both copper foil conductor and aluminium foil conductor. One iron core is clamped by two chucks of the copper foil winding machine and the foil conductor is wound on the core directly. The two chucks are driven by two servo motors, which guarantees the the same torque when winding. The copper foil winding machine features easy operation, high automation and so on.





Quick details of copper foil winding machine BRJ600-2-2



  • Two servo motors driving
  • Two chucks clamping iron core
  • Foil material ID 500mm
  • Maximum foil material OD 1000mm
  • Maximum winding speed 26rpm
  • Winding power 11kw
  • TIG welding
  • Customized color



Technical parameters of copper foil winding machine BRJ600-2-2



Typical standard specifications of BRJ600-2-2 are shown below, however, the foil winding machine can also be manufactured as requested.

Foil width: 250 ~ 600mm
Max. Finished Coil OD.: 800mm
Conductor Strip Material: Copper or Aluminum
Al Strip Thickness: 0.3 ~ 3.0 mm
Cu Strip Thickness: 0.2 ~ 2.0 mm
Foil Decoiler Number: 2 pcs
Foil Decoiler Length: 650mm
Foil Decoiler Expanding Range: Ø420 ~ 520mm
Max. Coil Weight: 1,000KG
Motor Power: 11kw
Max. Winding Speed: 26 rpm
Welding System: TIG
Insulation Decoiler Number: 2 pcs
Insulation Decoiler Width: 650mm
Insulation Decoiler Shaft: pneumatic open/close action
Edge Alignment System: Photoelectric sensing
Control System: PLC
User interface: 10 inches (254mm) touch screen
Counting Range: 0 ~ 9999.9



High Automation Reactor Copper Foil Winding Machine With Two Chucks 0

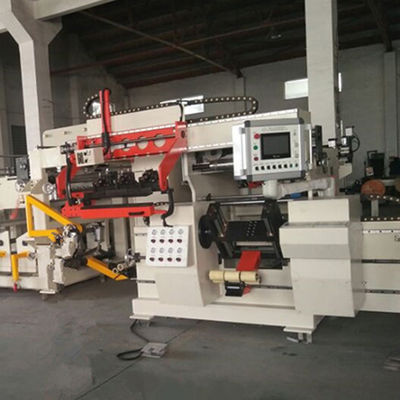

Fig 1: Copper foil winding machine BRJ600-2-2's front view



High Automation Reactor Copper Foil Winding Machine With Two Chucks 1

Fig 2: Copper foil winding machine BRJ600-2-2's foil decoiler
