180m/min Automatic Core Cutting Machine Producing Transformer Core Leg

180m/min Automatic Core Cutting Machine Producing Transformer Core Leg

180m/min Automatic Core Cutting Machine Producing Transformer Core Leg
180m/min Automatic Core Cutting Machine Producing Transformer Core Leg

Large Image :  180m/min Automatic Core Cutting Machine Producing Transformer Core Leg Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Model Number: ZZ400-BK
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 90 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Name: Transformer Core Cutting Machines Usage: Making Transformer Central Limb
Strip Width: 40 ~ 400mm Strip Thickness: 0.23 ~ 0.35mm
Feeding Speed: 180m/min Power: 14kw
Machine Color: Customizable Warranty Period: 12 Months
High Light:

Transformer Core Leg Cutting Machine

,

180m/Min Automatic Core Cutter

,

Automatic Core Cutting Machine 0.35mm

Automatic Core Cutting Machine Producing Transformer Core Leg

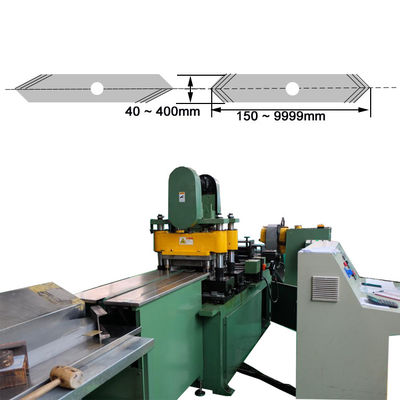

Description of core cutting machine ZZ400-BK



Automatic core cutting machine ZZ400-BK, also known as transformer center limb cutting machine, is a specialized piece of equipment used in the manufacturing process of transformer cores. This kind of cutting machine’s primary function is to cut and shape the center limbs of the transformer core, which are essential components for transformers. The center limb cutting machine employs precise cutting techniques, such as shearing or punching, to accurately cut the center limbs from electrical steel sheets. It is designed to handle different sizes and thicknesses of center limbs to accommodate various transformer designs and specifications. This kind of core cutting machine can cut the electrical steel sheet to make step lap sheet and punch holes on the sheet.





Quick details of automatic core cutting machine ZZ400-BK



  • Silicon steel thickness 0.2 ~ 0.35mm
  • Silicon steel width 40 ~ 400mm
  • Cutting speed 180m/min
  • Motor power 14kw



Technical parameters of automatic core cutting machine ZZ400-BK



Typical standard specifications of the cutting machine ZZ400-BK are shown below, however the cutting machine can also be manufactured as requested.

Roll Material Width Tolerance: ≤±0.1mm
Cutting Burr Length: ≤0.02mm
Silicon Steel Thickness: 0.2 ~ ‌0.35mm
Silicon Steel Width: 40 ~ 400mm
Cutting Length: 150 ~ 2500mm
Feeding Speed: 0 ~ 180m/min
Motor Power: 14Kw



180m/min Automatic Core Cutting Machine Producing Transformer Core Leg 0

Fig 1: Automatic core cutting machine ZZ400-BK's full view



180m/min Automatic Core Cutting Machine Producing Transformer Core Leg 1

Fig 2: Automatic core cutting machine ZZ400-BK's side view



180m/min Automatic Core Cutting Machine Producing Transformer Core Leg 2180m/min Automatic Core Cutting Machine Producing Transformer Core Leg 3180m/min Automatic Core Cutting Machine Producing Transformer Core Leg 4180m/min Automatic Core Cutting Machine Producing Transformer Core Leg 5

180m/min Automatic Core Cutting Machine Producing Transformer Core Leg 6180m/min Automatic Core Cutting Machine Producing Transformer Core Leg 7180m/min Automatic Core Cutting Machine Producing Transformer Core Leg 8180m/min Automatic Core Cutting Machine Producing Transformer Core Leg 9
