Silicon Steel Strip Automatic Core Cutting Machine With 180m/Min Feeding Speed

Silicon Steel Strip Automatic Core Cutting Machine With 180m/Min Feeding Speed

Silicon Steel Strip Automatic Core Cutting Machine With 180m/Min Feeding Speed
Silicon Steel Strip Automatic Core Cutting Machine With 180m/Min Feeding Speed

Large Image :  Silicon Steel Strip Automatic Core Cutting Machine With 180m/Min Feeding Speed Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Model Number: ZZ300
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 90 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Product Name: Transformer Core Cutting Machines Function: Making Transformer Center Post
Strip Width: 40 ~ 300mm Strip Thickness: 0.23 ~ 0.35mm
Cutting Speed: 180m/min Motor Power: 14kw
Machine Color: Customizable Warranty: 12 Months
High Light:

Automatic Core Cutting Machine 0.23mm

,

Automatic Transformer Core Cutter

,

Silicon Steel Strip Core Cutting Machine

Automatic Core Cutting Machine with 180m/min Feeding Speed





Description of automatic core cutting machine ZZ300



Automatic core cutting machine ZZ300 is a special equipment for cutting silicon steel strip to make center legs of transformer cores. The silicon steel strip with thickness from 0.2mm to 0.35mm and maximum width 300mm can be cut with this kind of core cutting machine. The source strip coil’s diameter can be 500mm and the dereeler can bear 1500kg. The core cutting machine’s feeding speed is 180m/min. One motor with power 14kw is adopted for the core cutting machine to provide big torque.





Quick details of automatic core cutting machine ZZ300



  • Sheet thickness 0.2 ~ 0.35mm
  • Sheet width 40 ~ 300mm
  • Feeding speed 180m/min
  • Power 14kw



Technical parameters of automatic core cutting machine ZZ300



Typical standard specifications of automatic core cutting machine ZZ300 are shown below, however the core cutting machine can also be manufactured as requested.

Roll Material Width Tolerance: ≤±0.1mm
Roll Material Burr Length: ≤0.02mm
Sheet Thickness: 0.2~‌0.35mm
Sheet Width: 40~300mm
Sheet Length: 150~2500mm
Cutting speed: 0~180m/min
Motor Power: 14Kw



Silicon Steel Strip Automatic Core Cutting Machine With 180m/Min Feeding Speed 0

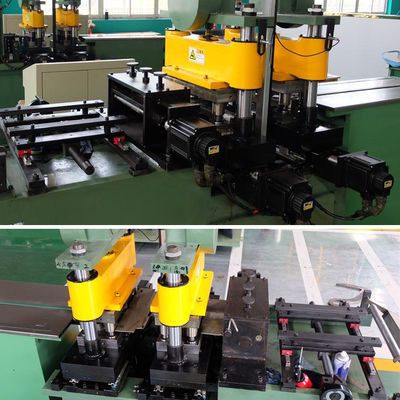

Fig 1: Automatic core cutting machine ZZ300's full view



Silicon Steel Strip Automatic Core Cutting Machine With 180m/Min Feeding Speed 1

Fig 2: Automatic core cutting machine ZZ300's side view



Silicon Steel Strip Automatic Core Cutting Machine With 180m/Min Feeding Speed 2Silicon Steel Strip Automatic Core Cutting Machine With 180m/Min Feeding Speed 3Silicon Steel Strip Automatic Core Cutting Machine With 180m/Min Feeding Speed 4Silicon Steel Strip Automatic Core Cutting Machine With 180m/Min Feeding Speed 5

Silicon Steel Strip Automatic Core Cutting Machine With 180m/Min Feeding Speed 6Silicon Steel Strip Automatic Core Cutting Machine With 180m/Min Feeding Speed 7Silicon Steel Strip Automatic Core Cutting Machine With 180m/Min Feeding Speed 8Silicon Steel Strip Automatic Core Cutting Machine With 180m/Min Feeding Speed 9
