Transformer Core Cutting Machine For Silicon Steel Sheet Cut To Length Line

Transformer Core Cutting Machine For Silicon Steel Sheet Cut To Length Line

Transformer Core Cutting Machine For Silicon Steel Sheet Cut To Length Line
Transformer Core Cutting Machine For Silicon Steel Sheet Cut To Length Line

Large Image :  Transformer Core Cutting Machine For Silicon Steel Sheet Cut To Length Line Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Model Number: HJX300-LL
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 90 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Name: Cut To Length Line Cutting Mode: Two Cuttings Two Punchings
Steel Thickness: 0.23 ~ 0.35mm Steel Width: 40 ~ 300mm
Feeding Speed: 120m/min Warranty: 12 Months
Cutting Bur: Less Than 0.02mm Power: 11kw
High Light:

Silicon Steel Sheet Core Cutting Machine

,

Transformer Core Cutting Machine 40mm

Factory Direct Sale Silicon Steel Sheet Cut To Length Line Transformer Core Cutting Machine

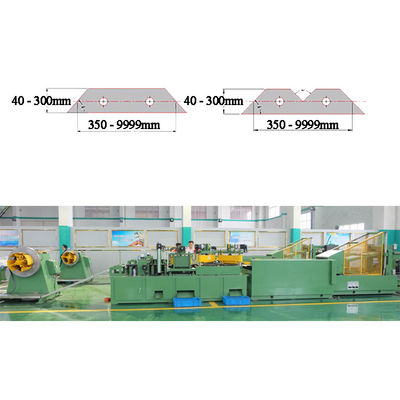

Description of transformer core cutting machine HJX300-LL



Transformer core cutting machine HJX300-LL is a professional cutter for cutting silicon steel sheet. The cut sheet can be used to make transformer iron core legs and yokes or other similar products. The transformer core cutting machine can cut the silicon steel sheet with maximum width 300mm. The transformer core cutting machine can cut beveled edges at both ends and punch the silicon steel to make two holes and a V-notch on the silicon steel. The core cutting machine’s control system is based on PLC, which make the cutting machine can cut the silicon steel sheet automatically after setting the relevant parameters. It is very easy to operate the transformer core cutting machine.





Quick details of transformer core cutting machine HJX300-LL

  • Silicon steel sheet thickness 0.2 ~ 0.35mm
  • Silicon steel sheet width 40 ~ 300mm
  • Feeding speed 0 ~ 120m/min
  • Motor power 11kw
  • Color as requested
  • 12 months warranty period



Main parameters of transformer core cutting machine HJX300-LL



The standard specifications of transformer core cutting machine HJX300-LL is shown below, however, the cutting machine can also be manufactured as requested.



Technical Specifications HJX300-LL
Sheet thickness: 0.2 ~ 0.35 mm
Sheet width: 40 ~ 300 mm
Cutting length: 350 ~ 9999 mm
Feeding speed: 120 m/min
Cutting angle precision: ±0.025°
Cutting length precision: ±0.1 mm
Cutting bur: ≤0.02 mm
Total power: 11 kw



Transformer Core Cutting Machine For Silicon Steel Sheet Cut To Length Line 0

Fig 1: Transformer core cutting machine HJX300-LLB's side view



Transformer Core Cutting Machine For Silicon Steel Sheet Cut To Length Line 1

Fig 2: Transformer core cutting machine HJX300-LLB's dereeler



Transformer Core Cutting Machine For Silicon Steel Sheet Cut To Length Line 2



Transformer Core Cutting Machine For Silicon Steel Sheet Cut To Length Line 3Transformer Core Cutting Machine For Silicon Steel Sheet Cut To Length Line 4Transformer Core Cutting Machine For Silicon Steel Sheet Cut To Length Line 5

Transformer Core Cutting Machine For Silicon Steel Sheet Cut To Length Line 6

Transformer Core Cutting Machine For Silicon Steel Sheet Cut To Length Line 7

Transformer Core Cutting Machine For Silicon Steel Sheet Cut To Length Line 8Transformer Core Cutting Machine For Silicon Steel Sheet Cut To Length Line 9Transformer Core Cutting Machine For Silicon Steel Sheet Cut To Length Line 10
