40 - 400mm Automatic Core Cutting Machine Making Transformer Core Center Limb

40 - 400mm Automatic Core Cutting Machine Making Transformer Core Center Limb

40 - 400mm Automatic Core Cutting Machine Making Transformer Core Center Limb
40 - 400mm Automatic Core Cutting Machine Making Transformer Core Center Limb

Large Image :  40 - 400mm Automatic Core Cutting Machine Making Transformer Core Center Limb Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Model Number: ZZ400
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 90 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Product Name: Core Cutting Machines Usage: Making Transformer Center Post
Strip Width: 40 ~ 400mm Strip Thickness: 0.23 ~ 0.35mm
Cutting Speed: 0 ~ 180m/min Power: 14kw
Color: Customizable Warranty: 12 Months
High Light:

180 M/Min Automatic Core Cutting Machine

,

Transformer Center Limb Automatic Core Cutter

,

Steel Stirp Automatic Core Cutting Machine

Factory Direct Sales Automatic Core Cutting Machine Making Transformer Core Center limb

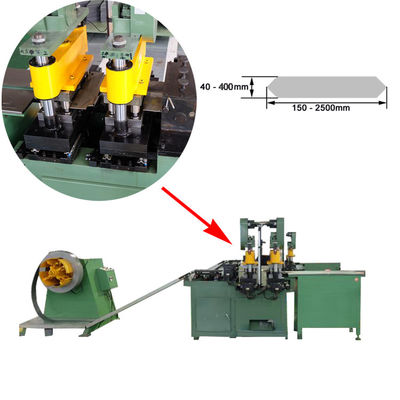

Description of core cutting machine ZZ400



Automatic core cutting machine ZZ400 is a special cutting equipment for cutting silicon steel strip to make center limbs of transformer cores. The core cutting machine can cut the silicon steel strip with thickness from 0.2mm to 0.35mm and the maximum width of the silicon steel strip is 400mm. The core cutting machine is provided with a decoiler for placing supply silicon steel coil with inner diameter 500mm. The maximum capacity of the decoiler is 1500kgs. The feeding speed of the core cutting machine can be adjusted and the maximum feeding speed is 180 meters per minute. With one 14kw motor, the core cutting machine can provide big pulling force. The core cutting machine features running smoothly, easy operation and so on.





Quick details of automatic core cutting machine ZZ400

  • Silicon steel thickness 0.2 ~ 0.35mm
  • Silicon steel width 40 ~ 400mm
  • Cutting speed 180m/min
  • Motor power 14kw



Technical parameters of automatic core cutting machine ZZ400



Typical standard specifications of the cutting machine ZZ400 are shown below, however the cutting machine can also be manufactured as requested.

Roll Material Width Tolerance: ≤±0.1mm
Cutting Burr Length: ≤0.02mm
Silicon Steel Thickness: 0.2 ~ ‌0.35mm
Silicon Steel Width: 40 ~ 400mm
Cutting Length: 150 ~ 2500mm
Feeding Speed: 0 ~ 180m/min
Motor Power: 14Kw



40 - 400mm Automatic Core Cutting Machine Making Transformer Core Center Limb 0

Fig 1: Core cutting machine ZZ400's full view



40 - 400mm Automatic Core Cutting Machine Making Transformer Core Center Limb 1

Fig 2: Core cutting machine ZZ400's cutter unit

40 - 400mm Automatic Core Cutting Machine Making Transformer Core Center Limb 2

40 - 400mm Automatic Core Cutting Machine Making Transformer Core Center Limb 340 - 400mm Automatic Core Cutting Machine Making Transformer Core Center Limb 4

40 - 400mm Automatic Core Cutting Machine Making Transformer Core Center Limb 5

40 - 400mm Automatic Core Cutting Machine Making Transformer Core Center Limb 6

40 - 400mm Automatic Core Cutting Machine Making Transformer Core Center Limb 7

40 - 400mm Automatic Core Cutting Machine Making Transformer Core Center Limb 8

40 - 400mm Automatic Core Cutting Machine Making Transformer Core Center Limb 940 - 400mm Automatic Core Cutting Machine Making Transformer Core Center Limb 1040 - 400mm Automatic Core Cutting Machine Making Transformer Core Center Limb 11
