High Precision Silicon Steel Strip Transformer Core Cutting Machine Cut To Length Line

High Precision Silicon Steel Strip Transformer Core Cutting Machine Cut To Length Line

High Precision Silicon Steel Strip Transformer Core Cutting Machine Cut To Length Line
High Precision Silicon Steel Strip Transformer Core Cutting Machine Cut To Length Line

Large Image :  High Precision Silicon Steel Strip Transformer Core Cutting Machine Cut To Length Line Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Model Number: HJX400
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 90 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Name: Cut To Length Line Cut Width: 40 ~ 400mm
Cut Thickness: 0.23 ~ 0.35mm Cut Length: 350 ~ 9999mm
Speed: 120m Per Minute Motor Power: 9kw
Color: As Requested Warranty Period: 12 Months
High Light:

Transformer Core Machine 120m/min

,

High Precision Transformer Core Cutting Machine

,

Silicon Steel Strip Transformer Core Cutter

High Precision Silicon Steel Strip Cut To Length Transformer Core Cutting Machine





Description of transformer core cutting machine HJX400



Transformer core cutting machine HJX400 is a special cut to length line, which is mainly used to cut silicon steel strip to make transformer core outer legs, yokes and other similar products. These cut products can be used to make transformer cores and other similar products. The cut to length line can cut the strip with maximum width 400mm. This kind of cut to length line can cut the silicon steel strip at the angle of 45 degree and 135 degree and make a V notching on the strip. With PLC control system, the transformer core cutting machine is very easy to be operated. The transformer core cutting machine features high speed, high stable performance, high precision, and so on.





Main parameters of transformer core cutting machine HJX400



The standard specifications of transformer core cutting machine HJX400 is shown below, however, the core cutting machine can also be manufactured as requested.

Technical Specifications HJX400
Silicon steel thickness 0.23 ~ 0.35mm
Steel width 40 ~ 400mm
Cutting length 350 ~ 9999mm
Feeding speed 120 m/min
Cutting angle tolerance ±0.025°
Cutting length tolerance ±0.10mm
Cutting burring ≤0.02mm
Total power 9kw



High Precision Silicon Steel Strip Transformer Core Cutting Machine Cut To Length Line 0

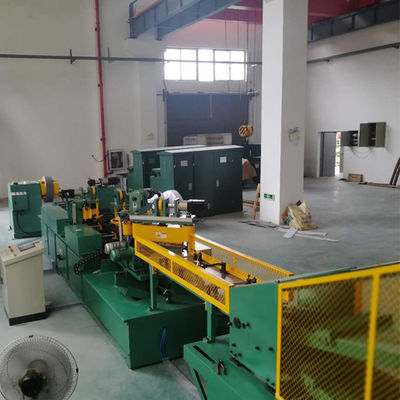

Fig 1: Transformer core cutting machine HJX400's full view



High Precision Silicon Steel Strip Transformer Core Cutting Machine Cut To Length Line 1

Fig 2: Transformer core cutting machine HJX400's side view



High Precision Silicon Steel Strip Transformer Core Cutting Machine Cut To Length Line 2High Precision Silicon Steel Strip Transformer Core Cutting Machine Cut To Length Line 3High Precision Silicon Steel Strip Transformer Core Cutting Machine Cut To Length Line 4High Precision Silicon Steel Strip Transformer Core Cutting Machine Cut To Length Line 5High Precision Silicon Steel Strip Transformer Core Cutting Machine Cut To Length Line 6High Precision Silicon Steel Strip Transformer Core Cutting Machine Cut To Length Line 7High Precision Silicon Steel Strip Transformer Core Cutting Machine Cut To Length Line 8















fIG
