14kw Transformer Core Cutting Machine Transformer Core Center Leg Making Equipment

14kw Transformer Core Cutting Machine Transformer Core Center Leg Making Equipment

14kw Transformer Core Cutting Machine Transformer Core Center Leg Making Equipment
14kw Transformer Core Cutting Machine Transformer Core Center Leg Making Equipment

Large Image :  14kw Transformer Core Cutting Machine Transformer Core Center Leg Making Equipment Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Certification: CE, etc
Model Number: ZZ300
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 90 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Machine Name: Transformer Core Cutting Machine Function: Making Center Leg
Sheet Thickness: 0.2~ 0.35mm Sheet Width: 40 ~ 300mm
Color: Optional Warranty Period: 12 Months
Speed: 0 ~ 180m/min Machine Power: 14kw
High Light:

Leg Making Transformer Core Cutting Machine

,

Transformer Core Center Leg Making Equipment

,

0.35mm Transformer Core Cutting Machine

Transformer Core Center Leg Making Equipment Transformer Core Cutting Machine





Description of transformer core cutting machine ZZ300



Transformer core cutting machine ZZ300 is a professional cutting equipment. The transformer core cutting machine can be used to cut silicon steel sheet, and the cut silicon steel sheet can be used to make center legs of transformer core and other similar products. This kind of transformer core cutting machine can cut the iron core sheet with maximum width 300mm and can cut different shapes of the center legs, such as equilateral center legs, eccentric center center legs, etc. With PLC control system, the transformer core cutting machine can be with different automatic functions. The transformer core cutting machine features easy operation, high production effective and so on.





Quick details of transformer core cutting machine ZZ300



Sheet thickness 0.2 ~ 0.35mm

Sheet width 40 ~ 300mm

Feeding speed 180m/min

Power 14kw





Technical parameters of transformer core cutting machine ZZ300



Typical standard specifications of transformer core cutting machine ZZ300 are shown below, however, the cutting machine can also be manufactured as requested.

Roll Material Width Tolerance: ≤±0.1mm
Roll Material Burr Length: ≤0.02mm
Sheet Thickness: 0.2~‌0.35mm
Sheet Width: 40~300mm
Sheet Length: 150~2500mm
Feeding speed: 0~180m/min
Power: 14Kw



14kw Transformer Core Cutting Machine Transformer Core Center Leg Making Equipment 0

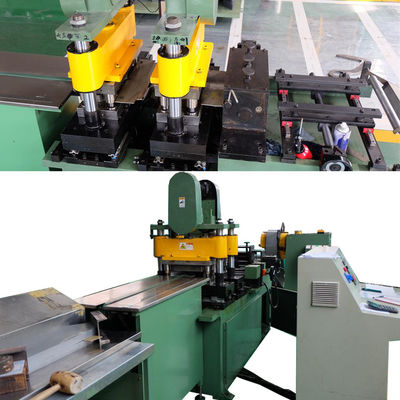

Fig 1: Transformer core cutting machine ZZ300's full view



14kw Transformer Core Cutting Machine Transformer Core Center Leg Making Equipment 1

Fig 2: Transformer core cutting machine ZZ300's side view



14kw Transformer Core Cutting Machine Transformer Core Center Leg Making Equipment 214kw Transformer Core Cutting Machine Transformer Core Center Leg Making Equipment 314kw Transformer Core Cutting Machine Transformer Core Center Leg Making Equipment 414kw Transformer Core Cutting Machine Transformer Core Center Leg Making Equipment 514kw Transformer Core Cutting Machine Transformer Core Center Leg Making Equipment 614kw Transformer Core Cutting Machine Transformer Core Center Leg Making Equipment 714kw Transformer Core Cutting Machine Transformer Core Center Leg Making Equipment 8
