Reactor Copper Foil Winding Machine Iron Core Clamping Type Foil Winder

Reactor Copper Foil Winding Machine Iron Core Clamping Type Foil Winder

Reactor Copper Foil Winding Machine Iron Core Clamping Type Foil Winder
Reactor Copper Foil Winding Machine Iron Core Clamping Type Foil Winder

Large Image :  Reactor Copper Foil Winding Machine Iron Core Clamping Type Foil Winder Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Certification: CE
Model Number: BRJ800-2-2
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: seaworthy packing
Delivery Time: 45 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Product Name: Copper Foil Winding Machine Usage: Winding Foil Coil
Cu Foil Thickness: 0.2 ~ 3.0mm Al Foil Thickness: 0.2 ~ 3.0mm
Color: As Requested Warranty Period: 12 Months
Rotating Speed: 0 ~ 24 Rpm Power: 11kw
High Light:

Iron Core Clamping Type Foil Winder

,

0.2mm Reactor Copper Foil Winding Machine

Iron Core Clamping Type Foil Winder Reactor Copper Foil Winding Machine





Quick details of copper foil winding machine BRJ800-2-2

  • Two chucks
  • Foil material ID 500mm
  • Foil material OD 1000mm
  • Maximum winding speed 24rpm
  • Winding power 11kw
  • TIG welding



Description of copper foil winding machine BRJ800-2-2



Copper foil winding machine BRJ800-2-2 is one kine of iron core clamping type foi winder. This kind of foil winding machine is mainly used to wind reactor foil coil and other similar products. The copper foil winding machine adopts double servo motors to drive two ends, which guarantees two chucks have the same torque and ensures two driving heads to wind synchronously. The copper foil winding machine can wind one or two layers of copper or aluminium foil conductor with maximum width 800mm and one or two layers of insulation paper at the same time. With HMI and control system based on PLC, the copper foil winding machine can be operated easily.





Technical parameters of copper foil winding machine BRJ800-2-2



Typical standard specifications of copper foil winding machine BRJ800-2-2 are shown below, however the copper foil winding machine can also be manufactured as requested.

Foil width: 250 ~ 800mm
Max. Finished Coil OD.: Ø850mm
Finished Coil Shape: Round, Rectangular and Oval
Conductor Foil Material: Copper or Aluminum foil
Al Foil Thickness: 0.3 ~ 3.0 mm
Cu Foil Thickness: 0.2 ~ 2.0 mm
Foil Decoiler Number: 2 sets
Foil Decoiler Diameter: Ø 480 ~ 520mm
Max. Coil Weight: 1,000KG
Motor Power: 11KW
Winding Speed: 0 ~ 24 rpm
Welding System: TIG
Insulation Decoiler Number: 2 sets
Edge Alignment System: Photoelectric sensing
Control System: PLC
User interface: 10 inches touch screen
Counting Range: 0 ~ 9999.9



Reactor Copper Foil Winding Machine Iron Core Clamping Type Foil Winder 0

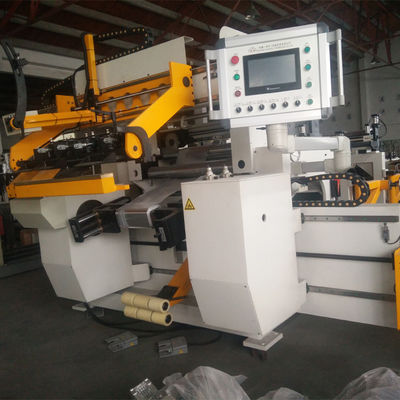

Fig 1: Copper foil winding machine BRJ800-2-2's front view
