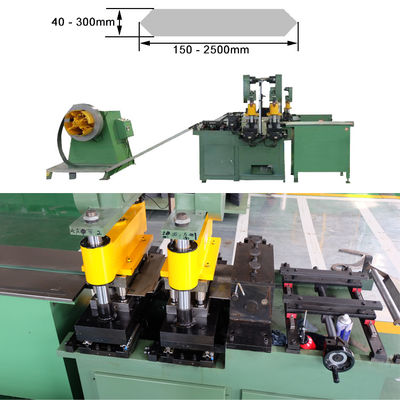

Automatic Core Cutting Machine Making Transformer Core Center Leg

Automatic Core Cutting Machine Making Transformer Core Center Leg

Automatic Core Cutting Machine Making Transformer Core Center Leg
Automatic Core Cutting Machine Making Transformer Core Center Leg

Large Image :  Automatic Core Cutting Machine Making Transformer Core Center Leg Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Model Number: ZZ300
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 90 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Name: Transformer Core Cutting Machines Usage: Making Transformer Center Post
Strip Width: 40 ~ 300mm Strip Thickness: 0.23 ~ 0.35mm
Cutting Speed: 180m/min Power: 14kw
Machine Color: Customizable Warranty: 12 Months
High Light:

Making Automatic Transformer Core Cutting Machine

,

Center Leg Automatic Core Cutting Machine

,

Transformer Automatic Core Cutting Machine

Automatic Core Cutting Machine Making Transformer Core Center Leg





Description of transformer core cutting machine ZZ300



Transformer core cutting machine ZZ300 is a special equipment to cut silicon steel, which can make transformer core center legs and other similar products. This kind of transformer core cutting machine can cut the silicon steel strip with maximum width 300mm. The transformer core cutting machine features easy operation, high automation and so on.





Quick details of transformer core cutting machine ZZ300



Sheet thickness 0.2 ~ 0.35mm

Sheet width 40 ~ 300mm

Feeding speed 180m/min

Power 14kw





Technical parameters of transformer core cutting machine ZZ300



Typical standard specifications of transformer core cutting machine ZZ300 are shown below and the cutting machine can also be manufactured as requested.

Roll Material Width Tolerance: ≤±0.1mm
Roll Material Burr Length: ≤0.02mm
Sheet Thickness: 0.2~‌0.35mm
Sheet Width: 40~300mm
Sheet Length: 150~2500mm
Feeding speed: 0~180m/min
Power: 14Kw



Automatic Core Cutting Machine Making Transformer Core Center Leg 0

Fig 1: Automatic core cutting machine ZZ300's full view



Automatic Core Cutting Machine Making Transformer Core Center Leg 1

Fig 2: Automatic core cutting machine ZZ300's side view



Automatic Core Cutting Machine Making Transformer Core Center Leg 2Automatic Core Cutting Machine Making Transformer Core Center Leg 3Automatic Core Cutting Machine Making Transformer Core Center Leg 4Automatic Core Cutting Machine Making Transformer Core Center Leg 5

Automatic Core Cutting Machine Making Transformer Core Center Leg 6Automatic Core Cutting Machine Making Transformer Core Center Leg 7Automatic Core Cutting Machine Making Transformer Core Center Leg 8Automatic Core Cutting Machine Making Transformer Core Center Leg 9
