Step Lap Silicon Steel Cutting Machine Transformer Core Cut To Length Line

Step Lap Silicon Steel Cutting Machine Transformer Core Cut To Length Line

Step Lap Silicon Steel Cutting Machine Transformer Core Cut To Length Line
Step Lap Silicon Steel Cutting Machine Transformer Core Cut To Length Line

Large Image :  Step Lap Silicon Steel Cutting Machine Transformer Core Cut To Length Line Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Model Number: HJX400-LLB
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 90 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Name: Core Cutting Machines Cutting Mode: Step Lap
Strip Thickness: 0.23 ~ 0.35mm Strip Width: 40 ~ 400mm
Cutting Speed: 0 ~ 120m/min Warranty Period: 12 Months
Cutting Burring: Less Than 0.02mm Motor Power: 15kw
High Light:

Silicon Steel Cutting Machine

,

Step Lap Cutting Machine

,

Transformer Core Cutting Machine

Step Lap Silicon Steel Cutting Machine Transformer Core Cut To Length Line





Introduction of transformer core cutting machine HJX400-LLB



Transformer core cutting machine HJX400-LLB is a professional cutter equipment. The cut to length line is mainly to cut silicon steel strip to make transformer core’s leg and yoke. The cut to length line can cut the silicon steel strip with maximum width 400mm. With control system based on PLC, the cut to length line can cut the strip precisely. It is very easy to operate the machine.





Main components of transformer core cutting machine HJX400-LLB



  • Hydraulic dereeler
  • Slopping feed device
  • Punch unit
  • Shearing unit
  • Outlet platform
  • Width adjusting system
  • Pneumatic system
  • Electric control system





Technical parameters of transformer core cutting machine HJX400-LLB



Typical standard specifications of HJX400-LLB are shown below, however, the transformer core cutting machine can also be manufactured as requested.



Two-end coil dereeler capacity 1000kg/end
Supply coil ID Φ500mm
Maximum supply coil OD Φ1200mm
Cutting heads 45+ ,45- , and triangle
Cutting thickness 0.23 ~ 0.35 mm
Cutting width 40 ~ 400 mm
Cutting length 350 ~ 9999 mm
Punch diameters Φ10mm, Φ14mm and Φ22mm, interchangeable, providing two sizes
Maximum feeding speed 120 m/min
Cutting angle accuracy ±0.05°
Cutting length accuracy ±0.10 mm
Cutting burring ≤0.02 mm
Installation capacity 15 kw



Step Lap Silicon Steel Cutting Machine Transformer Core Cut To Length Line 0

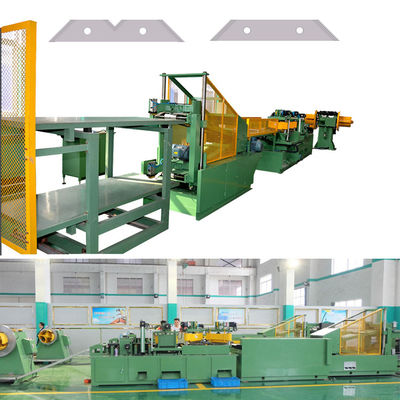

Fig 1:Cut to length line HJX400-LLB's side view



Step Lap Silicon Steel Cutting Machine Transformer Core Cut To Length Line 1

Fig 2: Cut to length line HJX400-LLB's coil dereeler



Step Lap Silicon Steel Cutting Machine Transformer Core Cut To Length Line 2Step Lap Silicon Steel Cutting Machine Transformer Core Cut To Length Line 3

Step Lap Silicon Steel Cutting Machine Transformer Core Cut To Length Line 4Step Lap Silicon Steel Cutting Machine Transformer Core Cut To Length Line 5Step Lap Silicon Steel Cutting Machine Transformer Core Cut To Length Line 6Step Lap Silicon Steel Cutting Machine Transformer Core Cut To Length Line 7Step Lap Silicon Steel Cutting Machine Transformer Core Cut To Length Line 8
